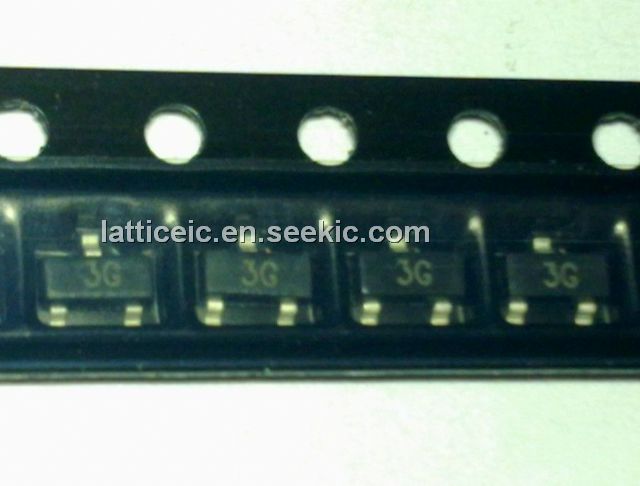

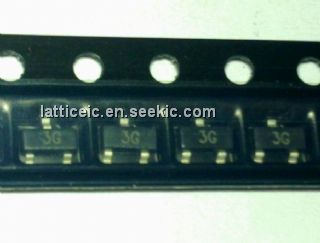

Product Summary

The BC857C is a PNP general purpose transistor designed for general purpose switching and amplification.

Parametrics

BC857C absolute maximum ratings: (1)VCBO, collector-base voltage at open emitter: -50v max; (2)VCEO, collector-emitter voltage at open base: -45V max; (3)VEBO, emitter-base voltage at open collector: -5V max; (4)IC, collector current (DC): -100mA max; (5)ICM, peak collector current: -200mA max; (6)IBM, peak base current: -200mA max; (7)Ptot, total power dissipation at Tamb ≤ 25 ℃: 250mW max; (8)Tstg, storage temperature: -65 to +150℃; (9)Tj, junction temperature: 150℃ max; (10)Tamb, operating ambient temperature: -65 to +150℃.

Features

BC857C features: (1)low current (max. 100 mA); (2)low voltage (max. 65 V).

Diagrams

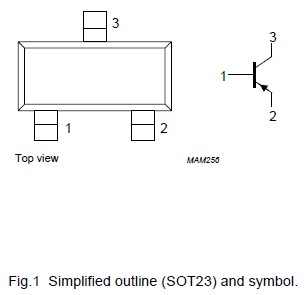

 BC857C outline and symbol

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BC857C
BC857C

Taiwan Semiconductor

Transistors Bipolar (BJT) Transistor 200mW

Data Sheet

0-3000: $0.01
3000-6000: $0.01
BC857C,215
BC857C,215

NXP Semiconductors

Transistors Bipolar (BJT) PNP GP 45V 100mA

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BC857C,235
BC857C,235

NXP Semiconductors

Transistors Bipolar (BJT) TRANS GP TAPE-13

Data Sheet

0-1: $0.08
1-25: $0.07
25-100: $0.05
100-250: $0.03
BC857C_D87Z
BC857C_D87Z

Fairchild Semiconductor

Transistors Bipolar (BJT) SOT-23 PNP GP AMP

Data Sheet

Negotiable
BC857C-7
BC857C-7

Diodes Inc.

Transistors Bipolar (BJT) PNP BIPOLAR

Data Sheet

Negotiable
BC857C-7-F
BC857C-7-F

Diodes Inc.

Transistors Bipolar (BJT) BIPOLAR TRANSISTOR PNP SOT-23

Data Sheet

0-1: $0.06
1-10: $0.05
10-100: $0.03
100-500: $0.02
BC857CDW1T1
BC857CDW1T1

ON Semiconductor

Transistors Bipolar (BJT) 100mA 50V Dual PNP

Data Sheet

Negotiable
BC857CDW1T1G
BC857CDW1T1G

ON Semiconductor

Transistors Bipolar (BJT) 100mA 50V Dual PNP

Data Sheet

0-1: $0.16
1-25: $0.14
25-100: $0.10
100-500: $0.08
