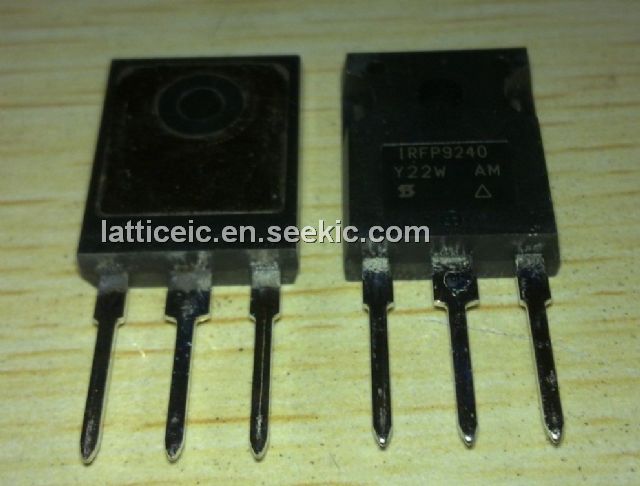

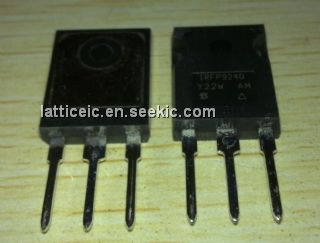

IRFP9240PBF

IRFP9240PBF, HEXFET Power MOSFET, TO-247AC, 200V, 12 A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	4.00 / Piece
51 ~ 500 :	3.00 / Piece
501 ~ 5000 :	1.50 / Piece

PartNumber:: IRFP9240PBF

Brand:: International Rectifier - IR | D/C: 12+

Availability:: Supply Ability: 20000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-10

From Other Seller

Part Number:IRFP9240PBF
US $1.50 - 4.00
Quantity:

piece

Product Summary

The IRFP9240PBF is a Third Generation HEXFET from International Rectifier. The IRFP9240PBF provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effictiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. The IRFP9240PBF also provides greater creepage distance between pins to meets the requirements of most safety specifications.

Parametrics

IRFP9240PBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: -12A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: -7.5A; (3)Pulsed Drain Current, IDM: -48A; (4)PD @TC = 25℃, Power Dissipation: 150W; (5)Linear Derating Factor: 1.2 W/℃; (6)Gate-to-Source Voltage, VGS: ±20 V; (7)Single Pulse Avalanche Energy, EAS: 790mJ; (8)Avalanche Current, IAR: -12 A; (9)Repetitive Avalanche Energy, EAR: 15 mJ; (10)Peak Diode Recovery dv/dt, dv/dt: -5 V/ns; (11)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +150℃; (12)Soldering Temperature, for 10 seconds 300℃ (1.6mm from case); (13)Mounting torque, 6-32 or M3 srew: 10 lbf·in (1.1N·m).

Features

IRFP9240PBF features: (1)Dynamic dv/dt Rating; (2)Repetitive avalanche rated; (3); (4)Isolated central mounting hole; (5)Fast Switching; (6)Ease of paralleling; (7)Simple drive requirements; (8)Lead-Free.
