Product Summary
The M27C64A-15F1 is a 64Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organized as 8,192 by 8 bits.
Parametrics
M27C64A-15F1 absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 125 ℃; (2)Temperature Under Bias: -50 to 125 ℃; (3)Storage Temperature: -65 to 150 ℃; (4)Input or Output Voltage (except A9): -2 to 7 V; (5)Supply Voltage: -2 to 7 V; (6)A9 Voltage: -2 to 13.5 V; (7)VPP Program Supply Voltage: -2 to 14 V.
Features
M27C64A-15F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: Active Current 30mA at 5MHz, standby current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word; (6)electronic signature: Manufacturer Code: 20h, Device Code: 8Dh.

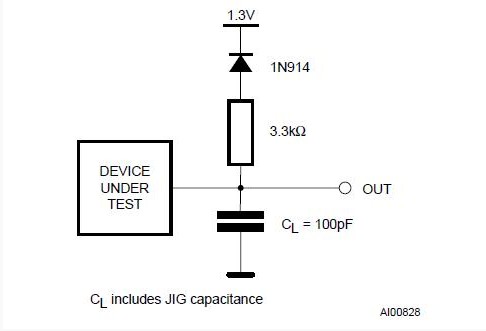

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

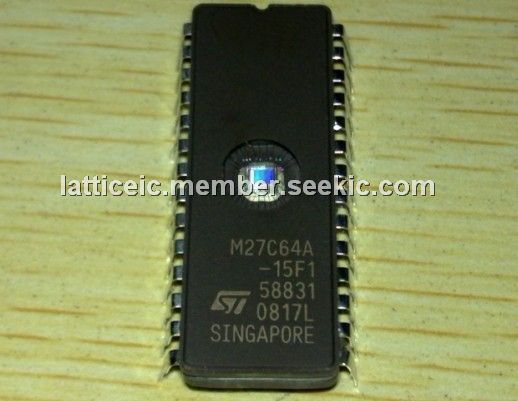

 M27C64A-15F1 |
STMicroelectronics |
EPROM 64K (8Kx8) 150ns |
Data Sheet |
Negotiable |
|
||||
