Product Summary

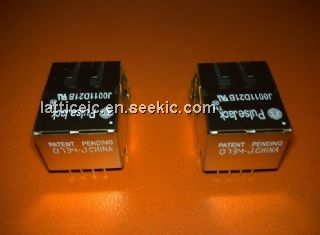

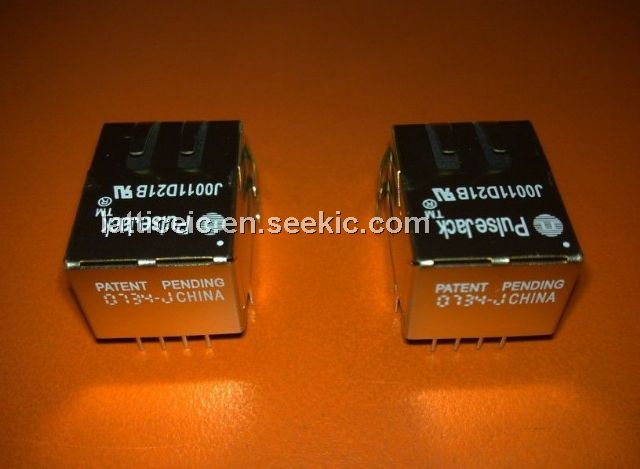

The J0011D21B is a 10/100 base-TX RJ45 1x1 tab-down with LEDs 8-pin integrated magnetics connector (ICM). It is designed to support applications, such as SOHO(ADSL modems), LAN-on-Motherboard (LOM), Hub and Switches.
Parametrics
J0011D21B absolute maximum ratings: (1)Electrical Specifications @ 25℃, Operating Temperature: 0℃ to +70℃; (2)Common mode rejection: -30 to -20dB.
Features
J0011D21B features: (1)RoHS peak wave solder temperature rating 260℃; (2)Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP; (3)Meets or exceeds IEEE 802.3 standard for 100Base-T; (4)350 μH minimum OCL with 8mA bias current; (5)Minimum 1500Vrms isolation per IEEE 802.3 requirement.

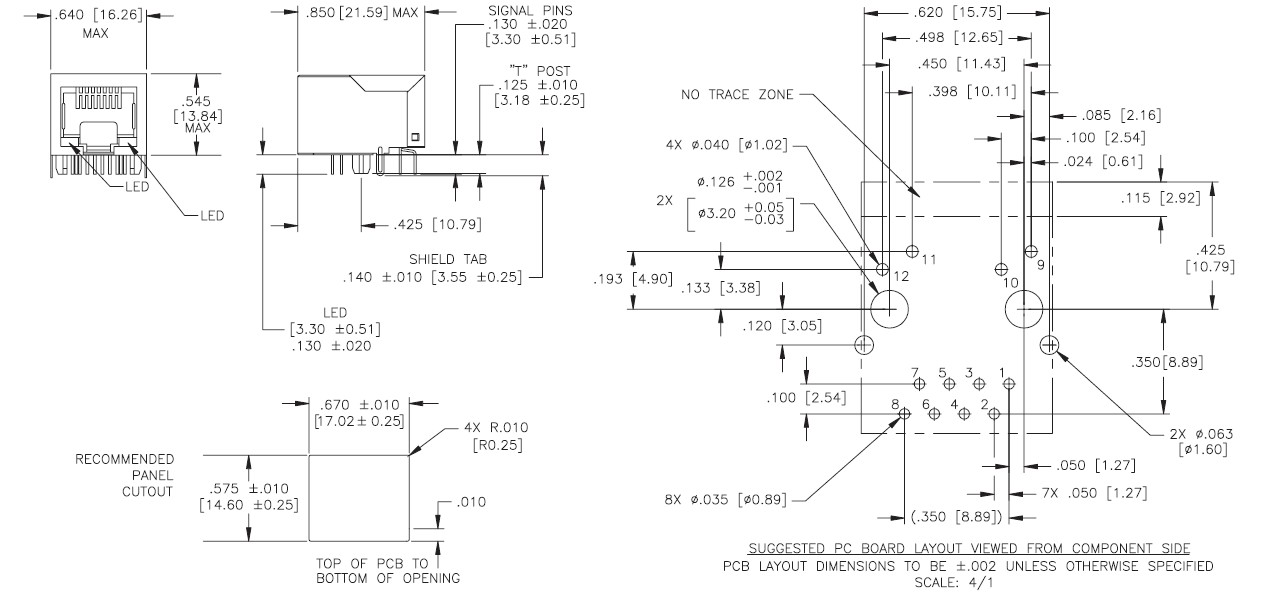

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 J0011D21B |
Pulse |
Ethernet & Telecom Connectors LEADED SINGLE PORT |
Data Sheet |
Negotiable |
|
||||||||||||
 |
J0011D21BNL |
Pulse |
Ethernet & Telecom Connectors LEADED SINGLE PORT |
Data Sheet |
|
|
||||||||||||
