Product Summary

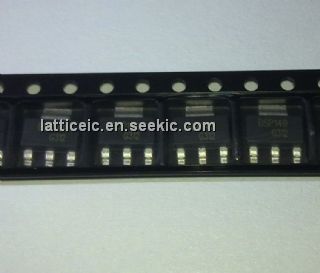

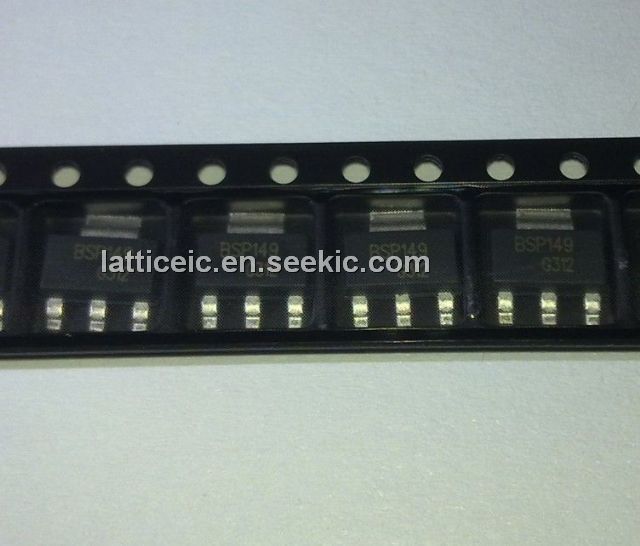

The BSP149L6327 is a Small-Signal-Transistor.

Parametrics

BSP149L6327 absolute maximum ratings: (1)Continuous drain current, ID: 0.66 A when TA=25℃; 0.53A when TA=70℃; (2)Pulsed drain current, ID,pulse: 2.6A when TA=25℃; (3)Reverse diode dv /dt, dv /dt: 6kV/μs; (4)Gate source voltage, VGS: ±20 V; (5)ESD sensitivity (HBM) as per MIL-STD 883: Class 1; (6)Power dissipation, Ptot: 1.8 W when TA=25℃; (7)Operating and storage temperature, Tj, Tstg: -55 to 150℃; (8)IEC climatic category; DIN IEC 68-1: 55/150/56.

Features

BSP149L6327 features: (1)N-channel; (2)Depletion mode; (3)dv /dt rated; (4)Available with VGS(th) indicator on reel; (5)Pb-free lead plating; RoHS compliant.

Diagrams

 BSP149L6327 pin connection
