Product Summary

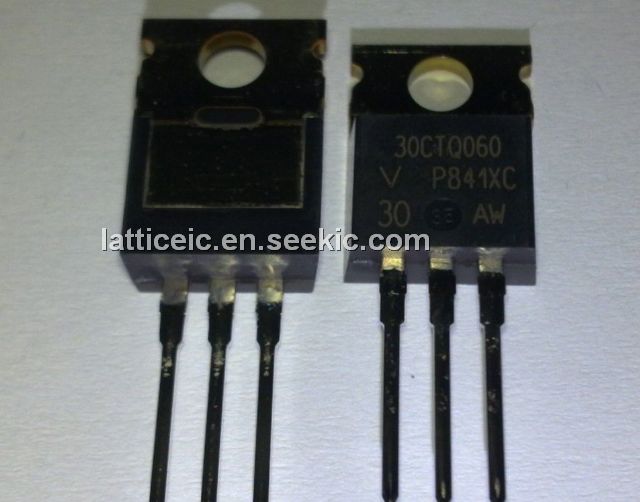

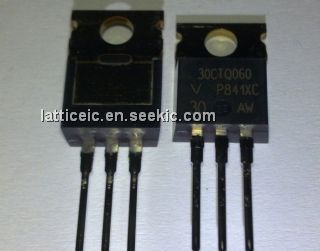

The 30CTQ060 is a center tap Schottky rectifier. It is designed for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150℃ junction temperature. Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

30CTQ060 absolute maximum ratings: (1)VR, Max. DC Reverse Voltage (V): 60 V; (2)VRWM, Max. Working Peak Reverse Voltage (V): 60 V; (3)IF(AV), Max. Average Forward Current when 50% duty cycle @ TC = 105°C, rectangular wave form: (Per Leg): 15 A; (Per Device): 30 A; (4)IFSM, Max. Peak One Cycle Non-Repetitive Surge Current (Per Leg): 1000 A when 5μs Sine or 3μs Rect. pulse and 260 A when 10ms Sine or 6ms Rect. pulse; (5)EAS, Non-Repetitive Avalanche Energy (Per Leg): 13 mJ when TJ = 25℃, IAS = 1.50 Amps, L = 11.5 mH; (6)IAR, Repetitive Avalanche Current (Per Leg): 1.50 A when Current decaying linearly to zero in 1 μsec and Frequency limited by TJ max. VA = 1.5 x VR typical.

Features

30CTQ060 features: (1)150℃ TJ operation; (2)Center tap configuration; (3)Very low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

Diagrams

 30CTQ060 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
30CTQ060
30CTQ060

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 30 Amp 60 Volt Common Cathode

Data Sheet

Negotiable
30CTQ060 -1
30CTQ060 -1

Other


Data Sheet

Negotiable
30CTQ060-1
30CTQ060-1

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 30 Amp 60 Volt Common Cathode

Data Sheet

Negotiable
30CTQ060-1PBF
30CTQ060-1PBF


DIODE SCHOTTKY 60V 15A TO262

Data Sheet

0-1: $1.19
1-10: $1.08
10-25: $0.96
25-100: $0.87
100-250: $0.77
250-500: $0.67
500-1000: $0.56
1000-2500: $0.52
2500-5000: $0.50
30CTQ060PBF
30CTQ060PBF


DIODE SCHOTTKY 60V 15A TO220AB

Data Sheet

0-1: $1.55
1-10: $1.40
10-25: $1.25
25-100: $1.13
100-250: $1.00
250-500: $0.88
500-1000: $0.73
1000-2500: $0.68
2500-5000: $0.65
30CTQ060L
30CTQ060L

Other


Data Sheet

Negotiable
30CTQ060S
30CTQ060S

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 30 Amp 60 Volt Common Cathode

Data Sheet

Negotiable
30CTQ060STRR
30CTQ060STRR

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 30 Amp 60 Volt Common Cathode

Data Sheet

Negotiable
