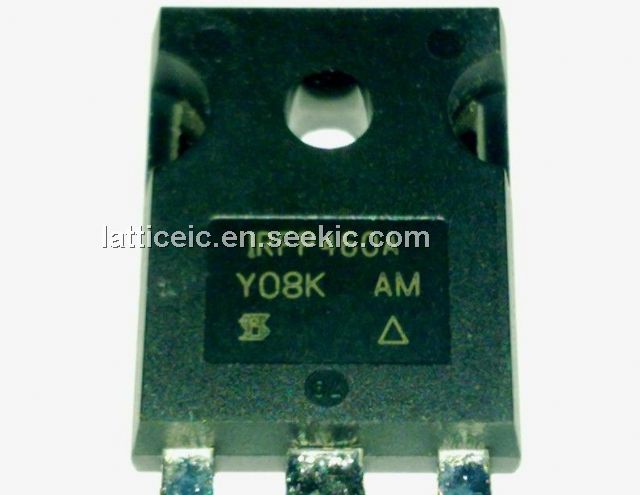

Product Summary

The IRFP460APBF is a SMPS MOSFET. The applications of the IRFP460APBF include switch Mode Power Supply (SMPS), Uninterruptable Power Supply, High speed power switching, Lead-Free.

Parametrics

IRFP460APBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 20A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 13A; (3)Pulsed Drain Current, IDM: 80A; (4)PD @TC = 25℃, Power Dissipation: 280W; (5)Linear Derating Factor: 2.2 W/℃; (6)Gate-to-Source Voltage, VGS: ±30 V; (7)Peak Diode Recovery dv/dt, dv/dt: 3.8V/ns; (8)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +150℃; (9)Soldering Temperature, for 10 seconds: 300℃ (1.6mm from case); (10)Mounting torque, 6-32 or M3 srew: 10 lbf·in (1.1N·m).

Features

IRFP460APBF features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Effective Coss specified.

Diagrams

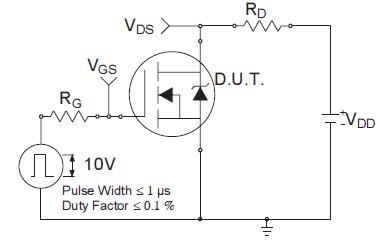

 IRFP460APBF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

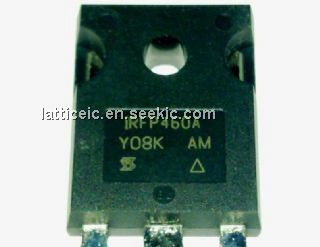

IRFP460APBF
IRFP460APBF

Vishay/Siliconix

MOSFET N-Chan 500V 20 Amp

Data Sheet

0-1: $2.23
1-10: $1.79
10-100: $1.63
100-250: $1.47
