Product Summary

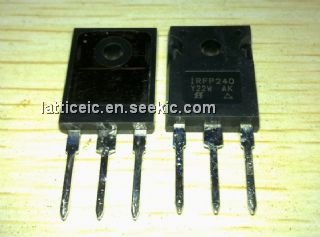

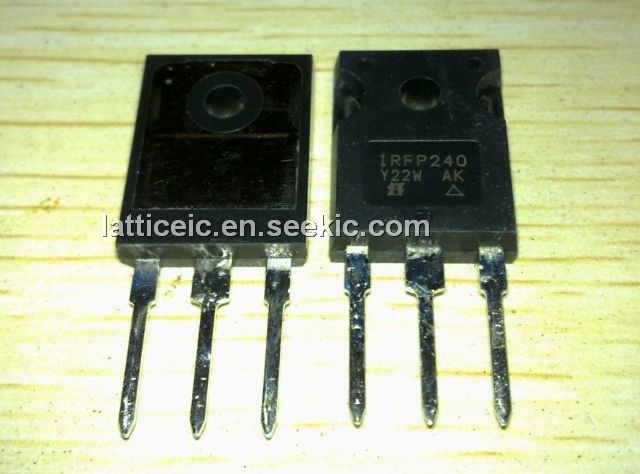

The IRFP240PBF is a Third Generation HEXFET from International Rectifier. The IRFP240PBF provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effictiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. The IRFP240PBF also provides greater creepage distance between pins to meets the requirements of most safety specifications.

Parametrics

IRFP240PBF absolute maximum ratings: (1)ID @ Tc = 25℃ Continuous Drain Current, Vqs @ -10V: 20 A; (2)ID @ Tc = 100℃ Continuous Drain Current, Vqs @ -10V: 12 A; (3)Pulsed Drain Current, Idm: 80 A; (4)PD @ TC = 25℃ Power Dissipation: 150 W; (5)Linear Derating Factor: 1.2 W/℃; (6)Gate-to-Source Voltage, VGS: ±20 V; (7)Single Pulse Avalanche Energy, EAS: 510 mJ; (8)Avalanche Gurrent, UR: 20 A; (9)Repetitive Avalanche Energy, EAR: 15 mJ; (10)Peak Diode Recovery dv/dt, dv/dt: 5.0 V/ns; (11)Operating Junction and Storage Temperature Range, Tj, TSTG: -55 to + 150℃; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (13)Mounting torque, 6-32 or M3 screw: 10 lbf-in (1.1 N-m).

Features

IRFP240PBF features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead-free.

Diagrams

 IRFP240PBF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP240PBF
IRFP240PBF

Vishay/Siliconix

MOSFET N-Chan 200V 20 Amp

Data Sheet

0-1: $1.31
1-10: $1.06
10-100: $0.95
100-250: $0.85
