IRF7304

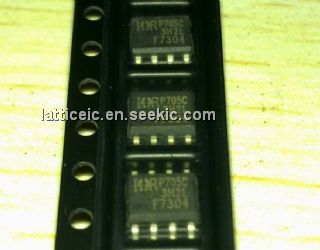

IRF7304, SOP, -3.6 A, Dual P-Channel Mosfet, 1.4W, ±8.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.50 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: IRF7304

Brand:: International Rectifier - IR | D/C: 12+

Availability:: Supply Ability: 50000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-10

From Other Seller

Part Number:IRF7304
US $0.20 - 0.50
Quantity:

piece

Product Summary

The Fifth Generation HEXFET IRF7304 from International Rectifier utilizes advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design for which HEXFET Power MOSFET IRF7304 is well known, provides the designer with an extremely efficient device for use in a wide variety of applications. The SO-8 of the IRF7304 has been modified through a customized leadframe for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra-red, or wave soldering techniques. Power dissipation of greater than 0.8W is possible in a typical PCB mount application.

Parametrics

IRF7304 absolute maximum ratings: (1)ID @ TA = 25℃ 10 Sec. Pulsed Drain Current, VGS @ -4.5V:-4.0 A; (2)ID @ TA = 25℃ Continuous Drain Current, VGS @ -4.5V: -3.6 A; (3)ID @ TA = 70℃ Continuous Drain Current, VGS @ -4.5V: -2.9 A; (4)IDM Pulsed Drain Current: -14 A; (5)PD @TA = 25℃ Power Dissipation (PCB Mount): 1.4 W; (6)Linear Derating Factor (PCB Mount): 0.011 W/℃; (7)VGS Gate-to-Source Voltage: ±8.0 V; (8)dv/dt Peak Diode Recovery dv/dt: -1.2 V/ns; (9)TJ, TSTG Junction and Storage Temperature Range: -55 to + 150 ℃.

Features

IRF7304 features: (1)Generation V Technology; (2)Ultra Low On-Resistance; (3)Dual P-Channel Mosfet; (4)Surface Mount; (5)Available in Tape & Reel; (6)Dynamic dv/dt Rating; (7)Fast Switching.
