Product Summary

The IRF7313 is a HEXFET power MOSFET. Fifth generation HEXFET IRF7313 from international rectifier utilizes advanced processing techniques to achieve ectremely low on resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET power MOSFET IRF7313 is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF7313 absolute maximum ratings: (1)Drain source voltage, VDS: 30V; (2)Gate source voltage, VGS: ±20V; (3)Continuous drain current, ID: TA=25℃, 6.5A; TA=70℃, 5.2A; (4)Pulsed drain current, IDM: 30A; (5)Power dissipation, PD: TA=25℃, 2.0W; TA=70℃, 1.3W; (6)Single pulse avalanche energy, EAS: 82mJ.

Features

IRF7313 features: (1) Generation V technology; (2) Ultra low on resistance; (3) Dual N channel MOSFET; (4) Surface mount; (5) Fully avalance rated; (6)Lead free.

Diagrams

 IRF7313 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

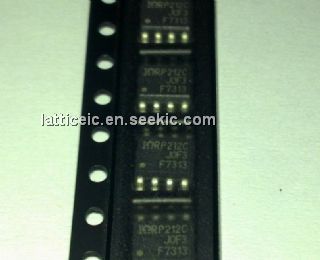

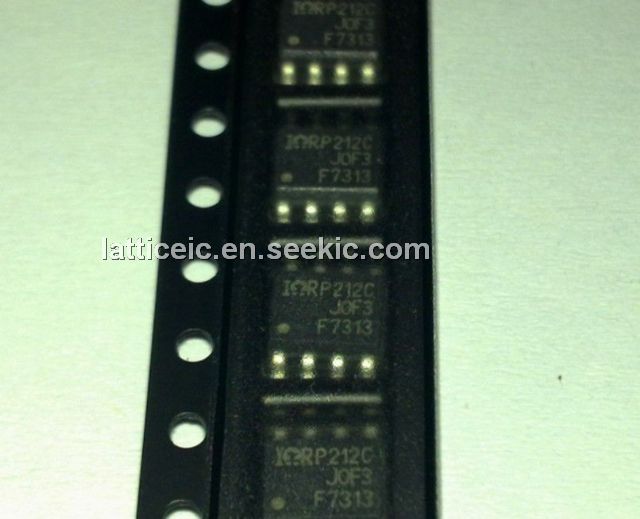

IRF7313
IRF7313


MOSFET 2N-CH 30V 6.5A 8-SOIC

Data Sheet

0-1: $1.42
1-10: $0.92
10-100: $0.71
100-250: $0.67
250-500: $0.63
500-1000: $0.60
1000-2500: $0.58
2500-10000: $0.53
IRF7313PBF
IRF7313PBF

International Rectifier

MOSFET

Data Sheet

0-1: $0.82
1-25: $0.50
25-100: $0.35
100-250: $0.30
IRF7313TRPBF
IRF7313TRPBF

International Rectifier

MOSFET MOSFT DUAL NCh 30V 6.5A

Data Sheet

0-1: $0.82
1-25: $0.50
25-100: $0.35
100-250: $0.33
IRF7313QPBF
IRF7313QPBF

International Rectifier

MOSFET

Data Sheet

Negotiable
IRF7313QTRPBF
IRF7313QTRPBF

International Rectifier

MOSFET

Data Sheet

Negotiable
IRF7313Q
IRF7313Q

Other


Data Sheet

Negotiable
