Product Summary

The 2MBI400N-060 is an IGBT module. The applications of it are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

2MBI400N-060 absolute maximum ratings: (1)Collector-Emitter Voltage: 600 V; (2)Gate-Emitter Voltage: ±20 V; (3)Collector current: IC at continuous: 400A, ICpulse at 1ms: 800A, -IC at continuous: 400A, -ICpulse at 1ms: 800A; (4)Max. Power Dissipation: 1500 W; (5)Operating Temperature: +150℃; (6)Storage Temperature: -40℃ to +125℃; (7)Isolation Voltage: 2500 V; (8)Screw Torque: mounting: 3.5 Nm; terminals: 4.5Nm.

Features

2MBI400N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).

Diagrams

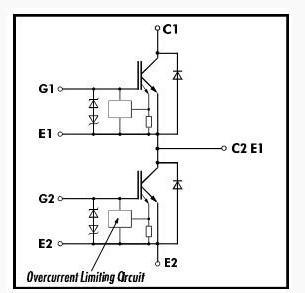

2MBI400N-060 block diagram
