Product Summary
The CS4398CZZR is a complete stereo 24 bit/192 kHz digitalto-analog system. This D/A system includes digital deemphasis, half dB step size volume control, ATAPI channel mixing, selectable fast and slow digital interpolation filters followed by an oversampled multi-bit deltasigma modulator that includes mismatch shaping technology that eliminates distortion due to capacitor mismatch. The CS4398CZZR also has an proprietary DSD processor that allows for volume control and 50 kHz on-chip filtering without an intermediate decimation stage. It also offers an optional path for direct DSD conversion by directly using the multi-element switched capacitor array. The CS4398CZZR accepts PCM data at sample rates from 32 kHz to 216 kHz, DSD audio data, has selectable digital filters, consumes little power, and delivers excellent sound quality.
Parametrics
CS4398CZZR absolute maximum ratings: (1)DC Power Supply, Analog power: -0.3 to 6.0V; (2)Input Current any pin except supplies Iin: ±10 mA; (3)Digital Input Voltage: -0.3 to VLS+ 0.4V; (4)Ambient Operating Temperature (power applied) TA: -55 to 125 ℃; (5)Storage Temperature Tstg: -65 to 150 ℃.
Features
CS4398CZZR features: (1)Advanced Multi-bit Delta-Sigma Architecture; (2)102 dB of Stopband Attenuation; (3)Supports Sample Rates up to 192 kHz; (4)Accepts up to 24 bit Audio Data; (5)Supports All Industry Standard Audio Interface Formats; (6)Selectable Digital Filter Response; (7)Volume Control with 1/2 dB Step Size and Soft Ramp; (8)Flexible Channel Routing and Mixing; (9)Selectable De-Emphasis; (10)Supports Stand-Alone or I2C/SPI Configuration Embedded Level Translators; (11)Direct Stream Digital (DSD); (12)Control Output for External Muting.

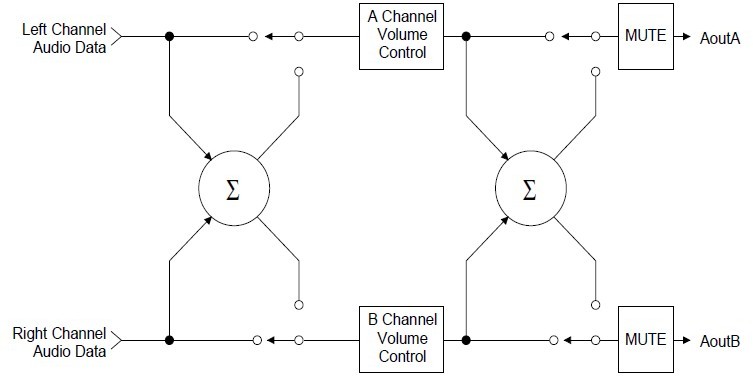

Diagrams
 |
