Product Summary

The NY24W-K/NY-24W-K is a miniature power relay.

Parametrics

NY24W-K/NY-24W-K characteristics: (1)Insulation resistance: 1000MΩ(at 500VDC); (2)Dielectric strength between coil & contacts: 2000VAC 1min; (3)Operate time(at nomi volt): 10ms max; (4)Release time(at nomi volt): 5ms max; (5)Shock resistance functional: 100m/s2(10g); destructive: 1000m/s2(100g); (6)Vibration resistance: 10Hz to 55Hz 1.5mmDA; (7)Humidity: 5% to 85% RH; (8)Ambient temperature: -40℃ to 85℃; (9)Termination: PCB; (10)Unit weight: approx. 3g; (11)Construction: wash tight.

Features

NY24W-K/NY-24W-K features: (1)5A switching capability; (2)2KV dielectric strength(between coil and contacts); (3)Silm size(width 5mm, height 12.5mm); (4)High sensitive: min 120mW; (5)the size and terminals compatible with HFS8(output module)and HF5420 SSR; (6)Sockets available; (7)Environmental friendly product(RoHS compliant); (8)Outline dimensions: (20.0×5.0×12.5)mm.

Diagrams

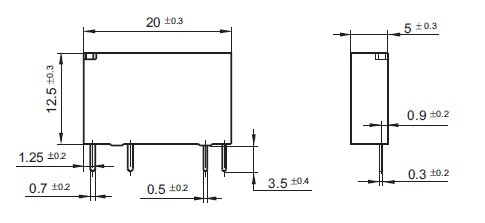

NY24W-K/NY-24W-K dimensions
