Product Summary
The TMS320F2808PZA a member of the TMS320C28x DSP generation, is a highly integrated, high-performance solution for demanding control application. Throughout this document, TMS320F2808PZA is abbreviated as F2801/9501, respectively. The TMS320F2808PZA device reference guides, flash tools, and other collateral are applicable to the UCD9501 device as well.
Parametrics
TMS320F2808PZA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL with respect to VSS: -0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO with respect to VSSA: - 0.3 V to 4.6 V; (3)Supply voltage range, VDD with respect to VSS: - 0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18 with respect to VSSA: - 0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND with respect to VSS: - 0.3 V to 0.3 V; (6)Input voltage range, VIN: - 0.3 V to 4.6 V; (7)Output voltage range, VO: - 0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN < 0 or VIN > VDDIO)(3): ± 20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDDIO): ± 20 mA.
Features
TMS320F2808PZA features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)Up to 2 Serial Communications Interface(SCI), Standard UART Modules; (4)High-Performance 32-Bit CPU (TMS320C28x); (5)Three 32-Bit CPU Timers; (6)Serial Port Peripherals; (7)Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts; (8)Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts.

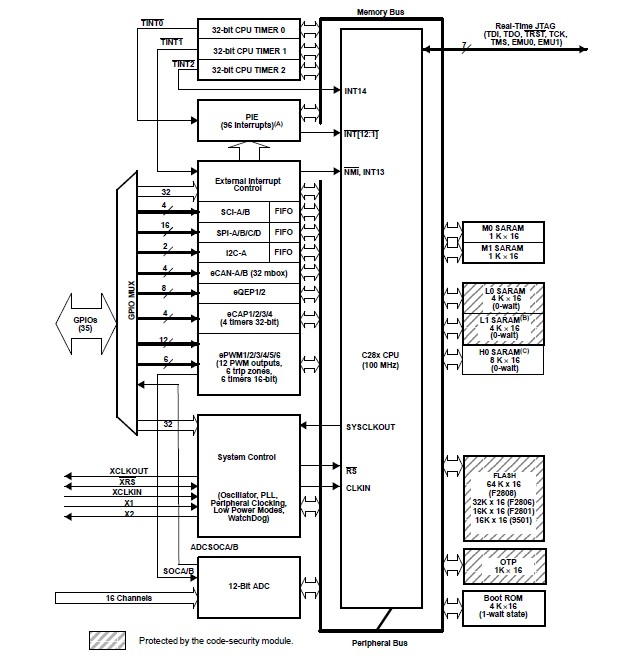

Diagrams
