Product Summary
The PEEL18CV8J-15 is a Programmable Electrically Erasable Logic (PEEL) device providing an attractive alternative to ordinary PLDs. The PEEL18CV8J-15 offers the performance, flexibility, ease of design and production practicality needed by logic designers today. The PEEL18CV8J-15 is available in 20-pin DIP, PLCC, SOIC and TSSOP packages with speeds ranging from 5ns to 25ns with power consumption as low as 37mA. EE-eprogrammability of the PEEL18CV8J-15 provides the convenience of instant reprogramming for development and reusable production inventory minimizing the impact of programming changes or errors. EE-Reprogrammability also improves factory testability, thus assuring the highest quality possible.
Parametrics
PEEL18CV8J-15 absolute maximum ratings: (1)VCC Supply Voltage Relative to Ground: -0.5 to + 6.0 V; (2)VI, VO Voltage Applied to Any Pin2 Relative to Ground1: -0.5 to VCC + 0.6 V; (3)IO Output Current Per Pin (IOL, IOH): ±25 mA; (4)TST Storage Temperature: -65 to +150 ℃; (5)TLT Lead Temperature Soldering 10 Seconds: +300 ℃.
Features
PEEL18CV8J-15 features: (1)Multiple Speed Power, Temperature Options; (2)CMOS Electrically Erasable Technology; (3)Development / Programmer Support; (4)Architectural Flexibility; (5)Enhanced architecture fits in more logic; (6)74 product terms x 36 input AND array; (7)10 inputs and 8 I/O pins; (8)12 possible macrocell configurations.

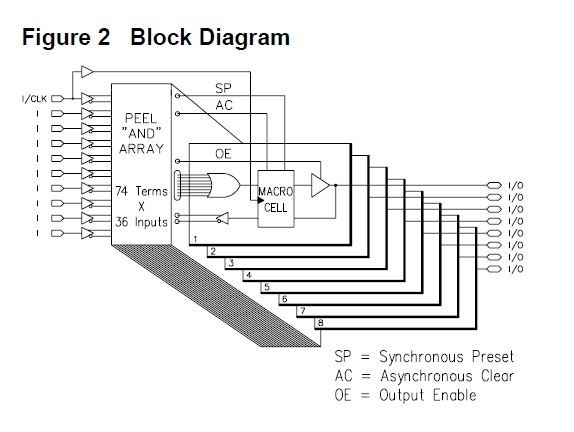

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PEEL18CV8J-15 |
Diodes Inc. |
SPLD - Simple Programmable Logic Devices 10 INP 8 I/O 15ns |
Data Sheet |
Negotiable |
|
||||
|
PEEL18CV8J-15L |
Diodes Inc. |
SPLD - Simple Programmable Logic Devices 10 Input 8 I/O 15ns |
Data Sheet |
Negotiable |
|
||||
