Product Summary

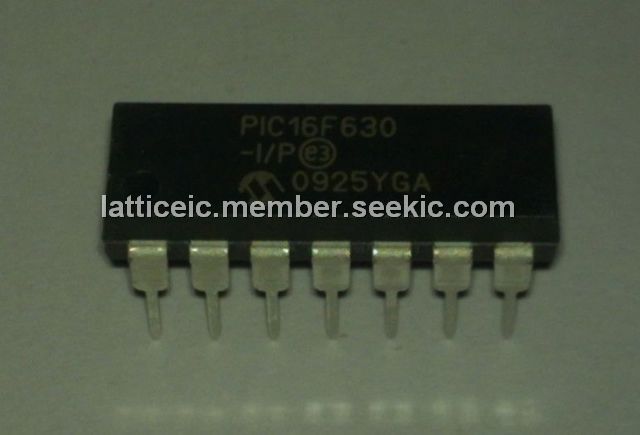

The PIC16F630-I/P is a 14-Pin FLASH-Based 8-Bit CMOS Microcontroller. It comes in 14-pin PDIP, SOIC and TSSOP packages. The device has a 13-bit program counter capable of addressing an 8K x 14 program memory space.
Parametrics
PIC16F630-I/P absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:-0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss:-0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD + 0.3V); (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:300 mA; (8)Maximum current into VDD pin:250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by PORTA and PORTC (combined):200 mA; (14)Maximum current sourced PORTA and PORTC (combined):200 mA.
Features
PIC16F630-I/P features: (1)Only 35 instructions to learn: All single-cycle instructions except branches; (2)Operating speed: DC-20 MHz oscillator/clock input, DC-200 ns instruction cycle; (3)Interrupt capability; (4)8-level deep hardware stack; (5)Direct, Indirect, and Relative Addressing modes; (6)Power saving SLEEP mode; (7)Wide operating voltage range - 2.0V to 5.5V; (8)Industrial and Extended temperature range; (9)Low power Power-on Reset (POR); (10)Power-up Timer (PWRT) and Oscillator Start-up ; (11)Timer (OST); (12)Brown-out Detect (BOD); (13)Watchdog Timer (WDT) with independent ; (14)oscillator for reliable operation; (15)Multiplexed MCLR/Input-pin; (16)Interrupt-on-pin change; (17)Individual programmable weak pull-ups; (18)Programmable code protection; (19)High Endurance FLASH/EEPROM Cell; (20)12 I/O pins with individual direction control; (21)High current sink/source for direct LED drive.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F630-I/P |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12 I/O Ind Temp PDIP14 |
Data Sheet |
|
|
||||||||||||
|
PIC16F630-I/PG |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12 I/O Lead Free Package |
Data Sheet |
Negotiable |
|
||||||||||||
