Product Summary

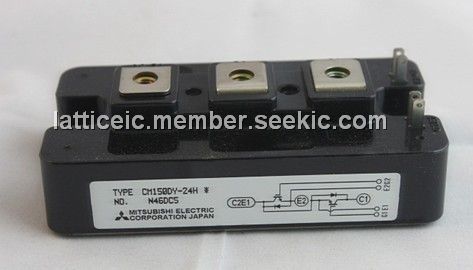

The CM150DY-24H is an IGBT Module. It is designed for use in switching applications. The CM150DY-24H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode.
Parametrics
CM150DY-24H absolute maximum ratings: (1)Junction Temperature Tj: –40℃ to 150℃; (2)Storage Temperature Tstg: –40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 150 Amperes; (6)Peak Collector Current ICM: 300 Amperes; (7)Emitter Current** (TC = 25℃) IE: 150 Amperes; (8)Peak Emitter Current IEM: 300 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃) Pc: 1100 Watts.
Features
CM150DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

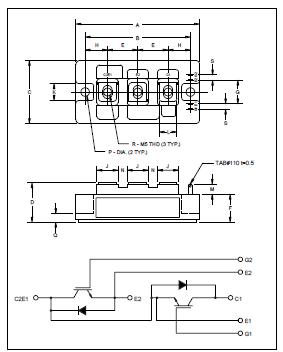

Diagrams
