Product Summary

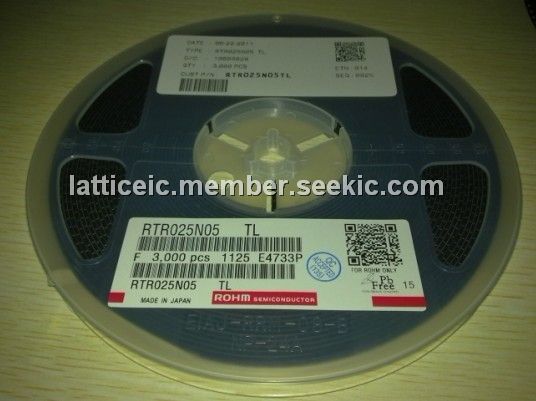

The RTR025N05-TL is a 2.5V Drive Nch MOSFET.

Parametrics

RTR025N05-TL absolute maximum ratings: (1)Drain-source voltage: 45V; (2)Gate-source voltage: ±12V; (3)Drain current: ±2.5A; (4)Source current: 0.8A; (5)Total power dissipation: 1.0W; (6)Channel temperature: 150℃; (7)Range of Storage temperature: -55 to +150℃.

Features

RTR025N05-TL features: (1)Low On-resistance; (2)Built-in G-S Protection Diode; (3)Small Surface Mount Package (TSMT3).

Diagrams

RTR025N05-TL Inner circuit
