Product Summary

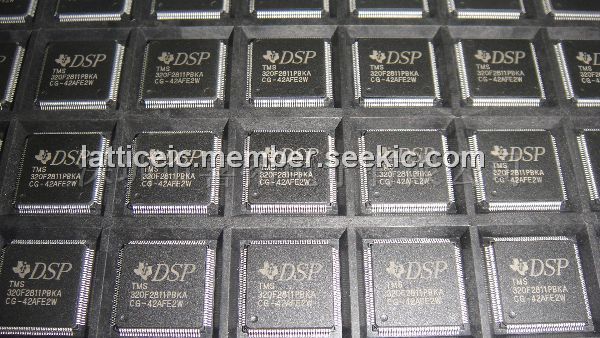

The TMS320F2811PBKA is a Digital Signal Processor. It is a highly integrated, high-performance solution for demanding control applications.
Parametrics
TMS320F2811PBKA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDDA1, VDDA2, VDDAIO, and AVDDREFBG: - 0.3 V to 4.6 V; (2)Supply voltage range, VDD, VDD1: - 0.5 V to 2.5 V; (3)VDD3VFL range: - 0.3 V to 4.6 V; (4)Input voltage range, VIN: - 0.3 V to 4.6 V; (5)Output voltage range, VO: - 0.3 V to 4.6 V; (6)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (7)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (8)Operating ambient temperature ranges, TA: A version (GHH, PGF, PBK): - 40℃ to 85℃; (9)TA: S version (GHH, PGF, PBK):- 40℃ to 125℃; (10)TA: Q version (GHH, PGF, PBK): - 40℃ to 125℃; (11)Storage temperature range, Tstg: - 65℃ to 150℃.
Features
TMS320F2811PBKA features: (1)16 x 16 and 32 x 32 MAC Operations; (2)16 x 16 Dual MAC; (3)Harvard Bus Architecture; (4)Fast Interrupt Response and Processing; (5)Unified Memory Programming Model; (6)4M Linear Program/Data Address Reach; (7)Code-Efficient (in C/C++ and Assembly); (8)TMS320F24x/LF240x Processor Source Code Compatible; (9)Boot ROM (4K x 16); (10)With Software Boot Modes; (11)Standard Math Tables; (12)External Interface (2812); (13)Up to 1M Total Memory; (14)Programmable Wait States; (15)Programmable Read/Write Strobe Timing; (16)Three Individual Chip Selects; (17)Clock and System Control; (18)Dynamic PLL Ratio Changes Supported; (19)Watchdog Timer Module; (20)Three External Interrupts; (21)Peripheral Interrupt Expansion (PIE) Block That Supports 45 Peripheral Interrupts; (22)Three 32-Bit CPU-Timers.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320F2811PBKA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 32-Bit Digital Sig Controller w/Flash |
Data Sheet |
|
|
||||||||||||
