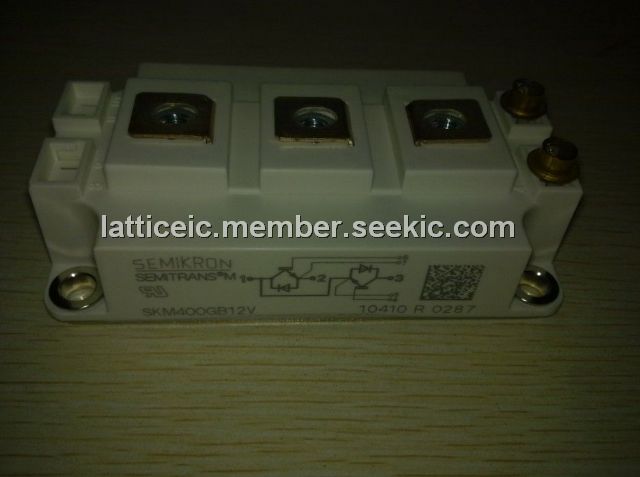

Product Summary

The SKM400GB12V is a semitrans. The applications of it include: AC inverter drives, UPS, Electronic welders.

Parametrics

SKM400GB12V absolute maximim ratings: (1)On the condition of Tj = 25 ℃, VCES: 1200V; (2)On the conditions of Tj = 175 ℃, Tc = 25 ℃, IC: 612A; On the conditions of Tj = 175 ℃, Tc = 80 ℃, IC: 467A; (3)ICnom: 400A; (4)On the condition of ICRM = 3xICnom, ICRM: 1200A; (5)VGES: -20 ~ 20V; (6)On the conditions of VCC = 720 V, Tj = 125 ℃, tpsc: 10μs; On the conditions of Tj = 125 ℃, VGE ≤ 20V, tpsc: 10μs; On the conditions of VCES ≤ 1200V, Tj = 125 ℃, tpsc: 10μs; (7)Tj: -40 ~ 175 ℃.

Features

SKM400GB12V features: (1)V-IGBT = 6. Generation Trench V-IGBT(Fuji); (2)CAL4 = Soft switching 4. Generation CAL-diode; (3)Isolated copper baseplate using DBC technology (Direct Copper Bonding); (4)UL recognized, file no. E63532; (5)Increased power cycling capability; (6)With integrated gate resistor; (7)Low switching losses at high di/dt.

Diagrams

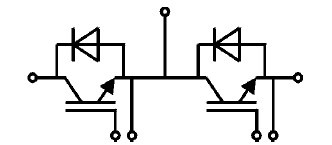

SKM400GB12V diagram
