Product Summary

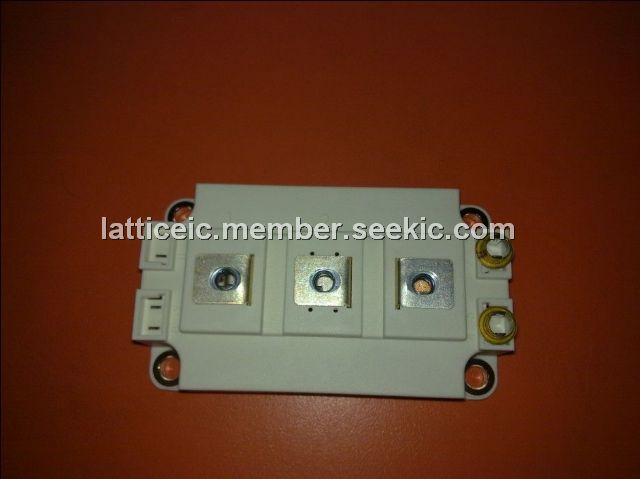

The SKM400GB125D is an ultra fast IGBT module. The applications of the SKM400GB125D include: (1)Switched mode power supplies at fsw>20KHz; (2)Resonant inverters up to 100KHz; (3)Inductive heating; (4)Electronic welders at fsw>20KHz.
Parametrics
SKM400GB125D absolute maximim ratings: (1)VCES: 1200V; (2)On the condition of Tc = 25(80) ℃, IC: 400(300)A; (3)On the condition of tp=1ms, ICRM: 600A; (4)VGES: ±20V; (5)On the condition of TOPERATION ≤ Tstg: -40~+150(125)℃; (6)On the condition of AC, 1min, Visol: 4000V.
Features
SKM400GB125D features: (1)N channel, homogeneous Si; (2)Low inductance case; (3)Short tail current with low temperature dependence; (4)High short circuit capability, self limiting to 6 × Icnom; (5)Fast & soft inverse CAL diodes; (6)Isolated copper baseplate using DBC direct copper bonding technology; (7)Large clearance(13mm) and creepage distances(20mm).

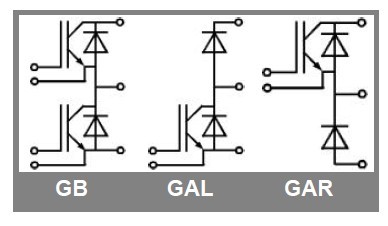

Diagrams
 |
