Product Summary

The DP83848IVV is a robust fully featured 10/100 single port Physical Layer device offering low power consumption, including several intelligent power down states. These low power modes increase overall product reliability due to decreased power dissipation. The DP83848IVV includes a 25MHz clock out. It is offered in a small form factor (48 pin LQFP) so that a minimum of board space is needed. The application of it include: (1)High End Peripheral Devices; (2)Industrial Controls and Factory Automation; (3)General Embedded Applications.

Parametrics

DP83848IVV absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 V to 4.2 V; (2)DC Input Voltage (VIN): -0.5V to VCC + 0.5V; (3)DC Output Voltage (VOUT): -0.5V to VCC + 0.5V; (4)Storage Temperature (TSTG): -65oC to 150℃; (5)Max case temp for TA = 85℃: 107 ℃; (6)Max. die temperature (Tj): 150 ℃; (7)Lead Temp. (TL)(Soldering, 10 sec.): 260 ℃; (8)ESD Rating(RZAP = 1.5k, CZAP = 120 pF): 4.0 kV.

Features

DP83848IVV features: (1)Low-power 3.3V, 0.18μm CMOS technology; (2)Low power consumption < 270mW Typical; (3)3.3V MAC Interface; (4)Auto-MDIX for 10/100 Mb/s; (5)Energy Detection Mode; (6)25 MHz clock out; (7)SNI Interface (configurable); (8)RMII Rev. 1.2 Interface (configurable); (9)MII Serial Management Interface (MDC and MDIO); (10)IEEE 802.3u MII; (11)IEEE 802.3u Auto-Negotiation and Parallel Detection; (12)IEEE 802.3u ENDEC, 10BASE-T transceivers and filters; (13)IEEE 802.3u PCS, 100BASE-TX transceivers and filters.

Diagrams

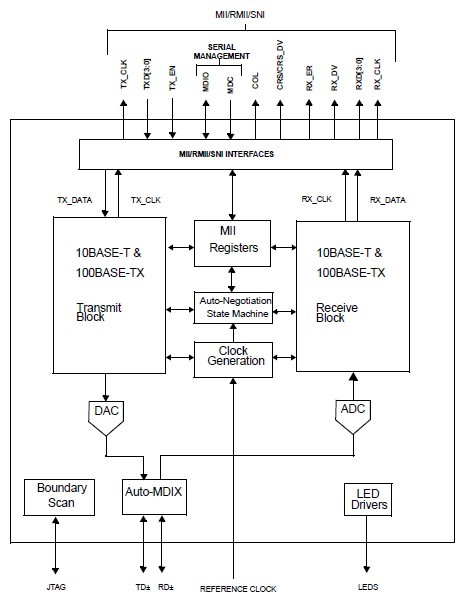

DP83848IVV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DP83848IVV/NOPB
DP83848IVV/NOPB
National Semiconductor (TI)
Ethernet ICs PHYTER COMMERCIAL TEMP SGL PORT
Data Sheet
0-1: $4.22
1-10: $3.80
10-25: $3.38
25-50: $3.19
DP83848IVVX/NOPB
DP83848IVVX/NOPB
National Semiconductor (TI)
Ethernet ICs
Data Sheet
0-1: $4.22
1-10: $3.80
10-25: $3.38
25-50: $3.19
