Product Summary
The ECQV1J104JM is a Stacked Metallized Film Capacitor designed for application where high density insertion of components is required.
Parametrics
ECQV1J104JM absolute maximum ratings: (1)Category temp. range (Including temperature-rise on unit surface): -40 ℃ to +105 ℃; (2)Rated voltage: 50VDC; (3)Capacitance range: 0.010 μF to 2.2 μF; (4)Capacitance tolerance: ±5 %(J); (5)Dissipation factor (tanδ): tanδ<=1.0 % (20 ℃, 1 kHz).
Features
ECQV1J104JM features: (1)Small size and large capacitance; (2)Excellent electric characteristics in non-inductive construction; (3)Wide range for automatic insertion; (4)RoHS directive compliant.

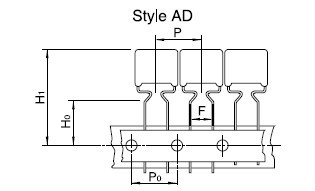

Diagrams
 |
 ECQV |
Other |
|
Data Sheet |
Negotiable |
|
||||
