Product Summary
The VND830PEPTR-E is a monolithic device made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The VND830PEPTR-E detects open load condition both is on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.
Parametrics
VND830PEPTR-E absolute maximum ratings: (1)VCC DC Supply Voltage: 41 V; (2)VCC Reverse DC Supply Voltage: - 0.3 V; (3)IGND DC Reverse Ground Pin Current: - 200 mA; (4)IOUT DC Output Current: Internally Limited; (5)IOUT Reverse DC Output Current: - 6 A; (6)IIN DC Input Current +/- 10 mA; (7)ISTAT DC Status Current: +/- 10 mA; (8)Ptot Power Dissipation Tlead=25℃: 8.3 W; (9)Tj Junction Operating Temperature: Internally Limited; (10)Tc Case Operating Temperature: - 40 to 150 ℃; (11)Tstg Storage Temperature: - 55 to 150 ℃.
Features
VND830PEPTR-E features: (1)CMOS compatible inputs; (2)open drain status outputs; (3)on state open load detection; (4)off state open load detection; (5)shorted load protection; (6)undervoltage and overvoltage shutdown; (7)loss of ground protection; (8)very low stand-by current; (9)reverse battery protection.

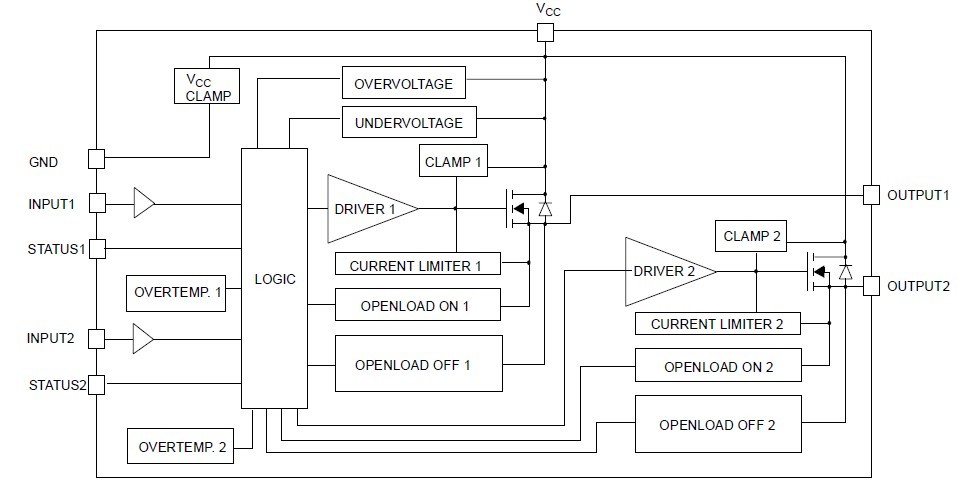

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VND830PEPTR-E |
STMicroelectronics |
Power Driver ICs DOUBLE Ch Hi SIDE DRIVER |
Data Sheet |
|
|
||||||||||||
