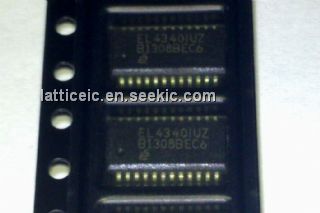

EL4340IUZ

EL4340IUZ, 500MHz, Triple, Multiplexing Amplifier, SOP, 11V, 50mA, Intersil Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	1.60 / Piece
51 ~ 500 :	1.20 / Piece
501 ~ 5000 :	0.80 / Piece

PartNumber:: EL4340IUZ

Brand:: Intersil Corporation - Intersil | Pack: SSOP | D/C: 12+

Availability:: Supply Ability: 20000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:EL4340IUZ
US $0.80 - 1.60
Quantity:

piece

Product Summary

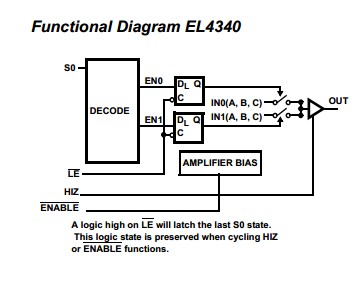

The EL4340IUZ is a 500MHz Triple, Multiplexing Amplifier. The EL4340IUZ is fixed unity gain mux amps featuring high slew rates and excellent bandwidth for video switching. The EL4340IUZ features a high impedance output state (HIZ) that enables the outputs of multiple devices to be wired together. A power-down mode (ENABLE) is included to turn off un-needed circuitry in power sensitive applications. The applications of the EL4340IUZ include HDTV/DTV analog inputs, Video projectors, Computer monitors, Set-top boxes, Security video, Broadcast video equipment.

Parametrics

EL4340IUZ absolute maximum ratings : (1)Supply Voltage (V+ to V-): 11V; (2)Input Voltage: V- -0.5V, V+ +0.5V; (3)Supply Turn-on Slew Rate: 1V/μs; (4)Digital & Analog Input Current (Note 1): 50mA; (5)Output Current (Continuous) : 50mA; (6)ESD Rating Human Body Model (Per MIL-STD-883 Method 3015.7): 2500V; (7)Machine Model : 300V; (8)Storage Temperature Range: -65℃ to +150℃; (9)Ambient Operating Temperature: -40 to +85℃; (10)Operating Junction Temperature: -40 to +125℃; (11)Power Dissipation: See Curves.

Features

EL4340IUZ features: (1)Triple 2:1 and 4:1 multiplexers for RGB; (2)Internally set gain-of-1; (3)High speed three-state outputs (HIZ); (4)Power-down mode (ENABLE) ; (5)Latch enable (EL4340); (6)±5V operation; (7)±870 V/μs slew rate; (8)500MHz bandwidth; (9)Typical supply currents 10mA/ch (EL4340) and 15.3mA/ch (EL4342); (10)Pb-free plus anneal available (RoHS compliant).
