ICL3232IBZ

Low Power transmitter, 3V, 250kbps, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: ICL3232IBZ

Brand:: Intersil Corporation - Intersil | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-08

From Other Seller

Part Number:ICL3232IBZ
US $0.30 - 0.60
Quantity:

piece

Product Summary

The ICL3232IBZ is a 3.0V to 5.5V powered RS-232 transmitter/receiver which meets ElA/TIA-232 and
V.28/V.24 speciﬁcations, even at VCC = 3.0V. Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Small footprint packaging, and the use of small, low value capacitors ensure
board space savings as well. Data rates greater than 250kbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V only systems, mixed 3.3V and 5.0V systems, and 5.0V only systems.

Parametrics

ICL3232IBZ absolute maximum ratings: (1)VCC to Ground: -0.3V to 6V; (2)V+ to Ground: -0.3V to 7V; (3)V- to Ground: +0.3V to -7V; (4)V+ to V-: 14V; (5)Maximum Junction Temperature (Plastic Package): 150℃; (6)Maximum Storage Temperature Range: -65℃ to 150℃; (7)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

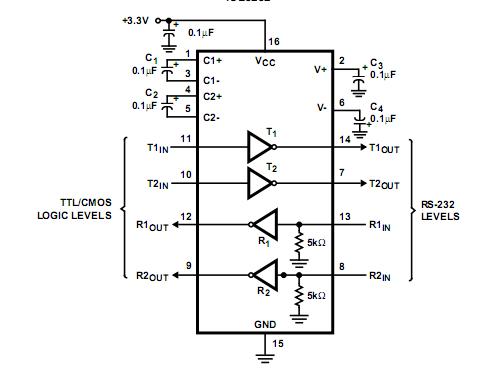

ICL3232IBZ features: (1)Low Power Upgrade for HIN232/ICL232 and Pin Compatible Competitor Devices; (2)Meets EIA/TIA-232 and V.28/V.24 Speci?cations at 3V; (3)Latch-Up Free; (4)On-Chip Voltage Converters Require Only Four External 0.1μF Capacitors; (5)Guaranteed Mouse Driveability; (6)Receiver Hysteresis For Improved Noise Immunity; (7)Guaranteed Minimum Data Rate: 250kbps; (8)Guaranteed Minimum Slew Rate: 6V/μs; (9)Wide Power Supply Range: Single +3V to +5.5V; (10)Low Supply Current in Powerdown State: 1μA.
