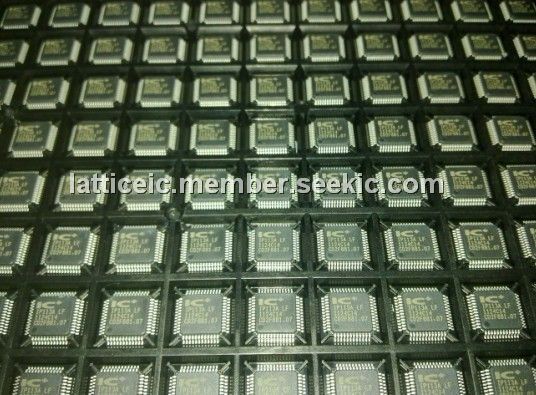

IP113A-LF

10/100BASE-TX to 100BASE-FX converter, QFP48, IP113A-LF, IC Plus Corp, Integrated Circuits

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~4.00

PartNumber:: IP113A-LF

Brand:: IC Plus Corp - IC Plus | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:IP113A-LF
US $2.00 - 4.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

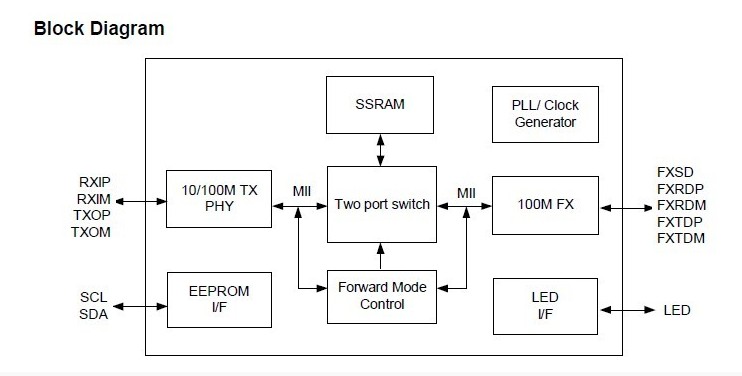

IP113A-LF can be a 10/100BASE-TX to 100BASE-FX converter. It consists of a 2-port switch controller, a fast Ethernet transceiver and a PHY for 100BASE-FX. The transceivers in IP113A-LF are designed in DSP approach with advance 0.25-um technology; this results in high noise immunity and robust performance. IP113A-LF not only supports store and forward mode, it also supports modified cut through mode and pure converter mode for low latency data forwarding. IP113A-LF can transmit packet(s) up to 1600 bytes to meet requirement of extra long packets. IP113A-LF supports IEEE802.3x, collision base backpressure, and various LED functions, etc. These functions can be configured to fit the different requirements by feeding operation parameters via EEPROM interface or pull up/down resistors on specified pins.

Parametrics

IP113A-LF absolute maximum ratings:(1)Supply Voltage: –0.3V to Vcc+0.3V; (2)Input Voltage: –0.3V to Vcc+0.3V; (3)Output Voltage: –0.3V to Vcc+0.3V; (4)Storage Temperature: -55℃ to 125℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.

Features

IP113A-LF features:(1)A 10/100BASE-TX/ 100BASE-FX converter; (2)Built in a 10/100BASE-TX transceiver; (3)Built in a PHY for 100BASE-FX; (4)Built in a 2-port switch; (5)Built in 128Kb RAM for data buffer; (6)Supports auto MDI-MDIX function; (7)Supports link fault pass through function; (8)Supports far end fault function; (9)LED display for link/activity, full/half, 10/100; (10)Built in a watchdog timer to monitor internal switch error; (11)Supports EEPROM Configuration; (12)0.25u CMOS technology; (13)Single 2.5V power supply; (14)48-pin LQFP package; (15)Support Lead Free package (Please refer to the Order Information).
