MSP430F169IPMR

mixed signal microcontroller, QFP-64, Clock Speed 8.00 MHz, Lifecycle Status Active, Mounting Type Surface Mount

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~7.00

PartNumber:: MSP430F169IPMR

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-14

From Other Seller

Part Number:MSP430F169IPMR
US $6.00 - 7.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

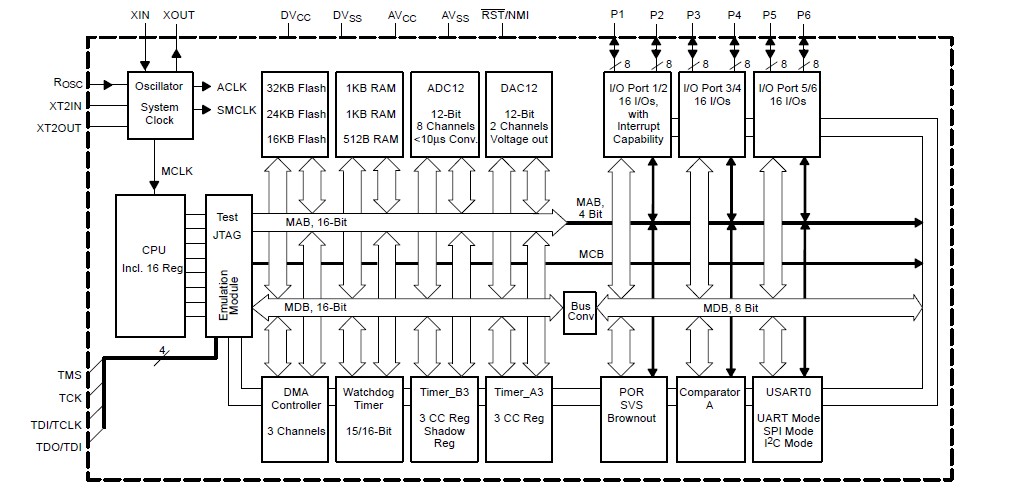

The MSP430F169IPMR is a mixed signal microcontroller. The Texas Instrument MSP430F169IPMR ultralow power microcontroller consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator of the MSP430F169IPMR (DCO) allows wake-up from low-power modes to active mode in less than 6μs. The MSP430F169IPMR microcontroller configuration with two built-in 16-bit timers, a fast 12-bit A/D converter, dual 12-bit D/A converter, one or two universal serial synchronous/asynchronous communication interfaces (USART), I2C, DMA, and 48 I/O pins. In addition, the MSP430F169IPMR x161x series offers extended RAM addressing for memory-intensive applications and large C-stack requirements.

Parametrics

MSP430F169IPMR maximum ratings: (1)Number of I/O Pins: 48 ; (2)Number of Pins: 64 ; (3)Access Time: 8.00 μs ; (4)Clock Speed: 8.00 MHz ; (5)Frequency: 8.00 MHz ; (6)Supply Voltage (DC): 3.30 V ; (7)Clock Speed: 8.00 MHz (max) ; (8)Operating Voltage: 1.80 V to 3.60 V ; (9)Supply Voltage (DC): 3.60 Vmax.

Features

MSP430F169IPMR features: (1)Case / Package LQFP-64; (2)Lead-Free Status Lead Free; (3)Lifecycle Status Active; (4)Mounting Type Surface Mount; (5)Packaging Cut Tape (CT), Tape & Reel (TR), Tape; (6)Part Family MSP430F169; (7)RoHS Compliant.
