Product Summary
The ISL8485EIB is ESD protected, BiCMOS 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. Each driver output/receiver input is protected against ±15kV ESD strikes, without latch-up. Unlike competitive devices, this Intersil family is specified for 10% tolerance supplies (4.5V to 5.5V). Applications include Factory Automation, Security Networks, Building Environmental Control Systems, Industrial/Process Control Networks and Level Translators.
Parametrics
ISL8485EIB absolute maximum ratings: (1)VCC to Ground: 7V; (2)Input / Output Voltages A/Y, B/Z: -8V to +12.5V; (3)Input / Output Voltages RO: -0.5V to (VCC +0.5V); (4)Maximum Junction Temperature (Plastic Package): 150℃; (5)Maximum Storage Temperature Range: -65℃ to 150℃; (6)Maximum Lead Temperature (Soldering 10s): 300℃.
Features
ISL8485EIB features: (1)Pb-Free Plus Anneal Available (RoHS Compliant); (2)125℃ Temperature Option; (3)Specified for 10% Tolerance Supplies; (4)High Data Rate Version; (5)Single Unit Load Allows up to 32 Devices on the Bus; (6)Low Quiescent Current; (7)-7V to +12V Common Mode Input Voltage Range; (8)Three State Rx and Tx Outputs; (9)30ns Propagation Delays, 5ns Skew; (10)Operate from a Single +5V Supply (10% Tolerance); (11)Current Limiting and Thermal Shutdown for driver Overload Protection.

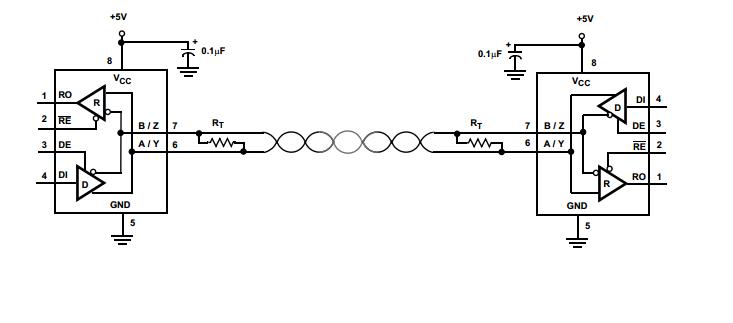

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL8485EIB |
|
IC TXRX RS-485/422 ESD 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ISL8485EIB-T |
|
IC TXRX RS485/422 5V ESD 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
ISL8485EIBZ |
Intersil |
Buffers & Line Drivers 8LD -40+85 15KV HBM 5V RS-485 TRANS 1T |
Data Sheet |
|
|
||||||||||||
|
ISL8485EIBZ-T |
Intersil |
Buffers & Line Drivers 8LD 15KV HBM 5V RS-485 TRANSCEIV |
Data Sheet |
|
|
||||||||||||
