Product Summary
The CM300DY-12NF is a high power switching use. It is used in general purpose inverters & servo controls, etc.
Parametrics
CM300DY-12NF absolute maximim ratings: (1)VCES Collector-emitter voltage: 600V; (2)VGES Gate-emitter voltage: ±20V; (3)IC Collector current: 300A; ICM Collector current: 600A; (4)IE Emitter current: 300A; IEM Emitter current: 600A; (5)PC Maximum collector dissipation: 780W; (6)Tj Junction temperature: -40~+150℃; (7)Tstg Storage temperature: -40~+125℃; (8)Viso Isolation voltage: 2500V; (9)Torque strength: 2.5~3.5N.m; (10)Weight: 310g.
Features
CM300DY-12NF features: (1)IC: 300A; (2)VCES: 600V; (3)Insulated type; (4)2-elements in a pack.

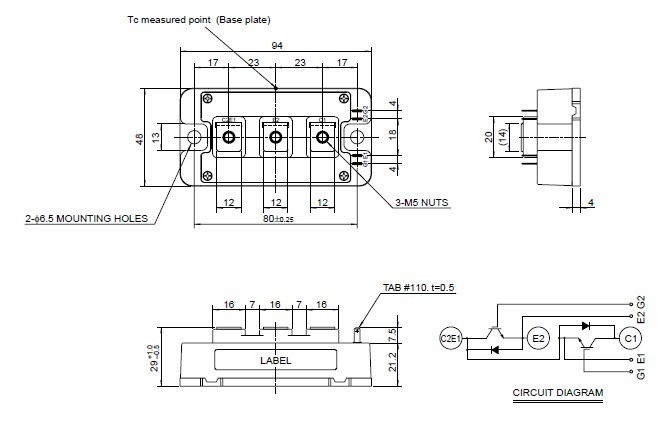

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM300DY-12NF |
|
IGBT MOD DUAL 600V 300A NF SER |
Data Sheet |
|
|
||||||||||||||||
