MAX1487EPA+

low-power transceiver, 0.5V, 727mW, 2.5Mbps, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: MAX1487EPA+

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-05

From Other Seller

Part Number:MAX1487EPA+
US $0.30 - 0.60
Quantity:

piece

Product Summary

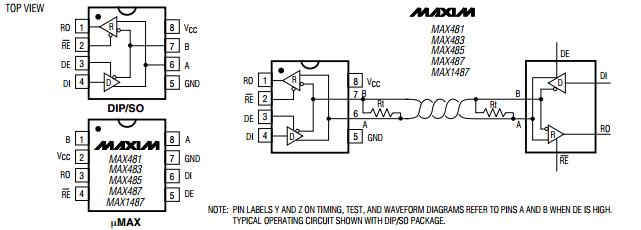

The MAX1487EPA+ is a low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The driver slew rate of the MAX1487EPA+ is not limited, allowing them to transmit up to 2.5Mbps. Applications include Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX1487EPA+ absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)Continuous Power Dissipation 8-Pin Plastic DIP: 727mW; (8)Continuous Power Dissipation 14-Pin Plastic DIP: 800mW; (9)Continuous Power Dissipation 8-Pin SO: 471mW; (10)Operating Temperature Ranges: -40℃ to +85℃; (11)Storage Temperature Range: -65℃ to +160℃; (12)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX1487EPA+ features: (1)For Fault-Tolerant Applications; (2)For Space-Constrained Applications; (3)For Multiple Transceiver Applications; (4)For Fail-Safe Applications; (5)For Low-Voltage Applications.
