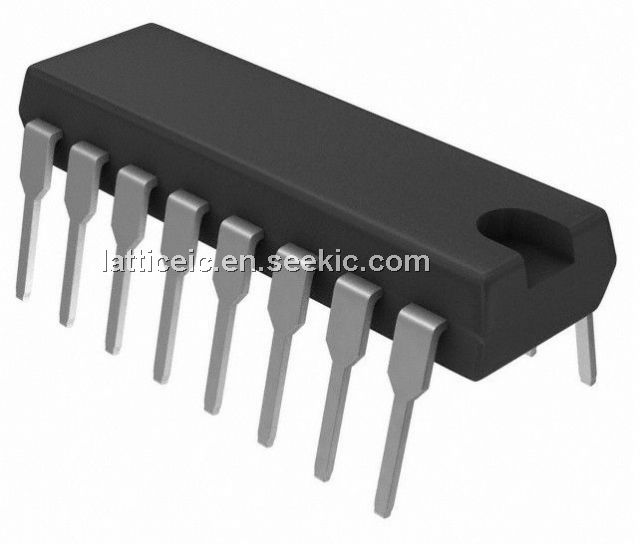

MAX232INE4

dual driver, Low Supply Current, 8mA, 5V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
50 ~ 500 :	0.30 / Piece
500 ~ 5000 :	0.20 / Piece

PartNumber:: MAX232INE4

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:MAX232INE4
US $0.20 - 0.40
Quantity:

piece

Product Summary

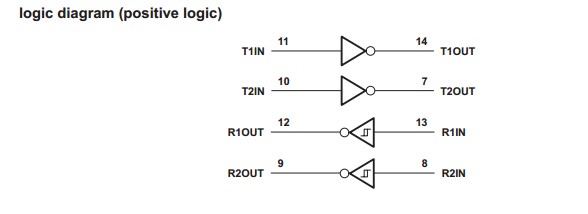

The MAX232INE4 is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels.

Parametrics

MAX232INE4 absolute maximum ratings: (1)Input supply voltage range, VCC (see Note 1): -0.3 V to 6 V; (2)Positive output supply voltage range, VS+: VCC-0.3 V to 15 V; (3)Negative output supply voltage range, VS-: -0.3 V to -15 V; (4)Operating virtual junction temperature, TJ: 150℃; (5)Storage temperature range, Tstg: -65 to 150℃.

Features

MAX232INE4 features: (1)Operates From a Single 5-V Power Supply With 1.0 μF Charge-Pump Capacitors; (2)Operates Up To 120 kbit/s; (3)Two Drivers and Two Receivers; (4)±30-V Input Levels; (5)Low Supply Current: 8mA Typical.
