Product Summary

The MAX706TCSA+ is a microprocessor μP supervisory circuit which reduces the complexity and number of components required to monitor +3V power-supply levels in +3V to +5V μP systems. Applications include battery-powered equipment, portable instruments, computers, controllers, intelligent instruments and critical μP power monitoring.

Parametrics

MAX706TCSA+ absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to 6.0V; (2)Terminal Voltage All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)Input Current VCC: 20mA; (4)Input Current GND: 20mA; (5)Input Current Output Current (all outputs): 20mA; (6)Continuous Power Dissipation: 727mW; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX706TCSA+ features: (1)μMAX Package: Smallest 8-Pin SO; (2) Precision 3.08V Supply-Voltage Monitor; (3)200ms Reset Pulse Width; (4)Debounced TTL/CMOS-Compatible Manual-Reset Input; (5)100μA quiescent current; (6)8-pin surface-mount package.

Diagrams

MAX706TCSA+ typical operating circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

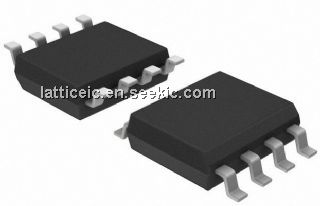

MAX706TCSA+
MAX706TCSA+

Maxim Integrated Products

Supervisory Circuits Single uPower Supervisor

Data Sheet

0-1: $4.09
1-25: $2.73
25-50: $1.93
50-250: $1.90
MAX706TCSA+T
MAX706TCSA+T

Maxim Integrated Products

Supervisory Circuits Single uPower Supervisor

Data Sheet

0-2085: $1.69
2085-2500: $1.69
