Product Summary

The MAX7219EWG+ is a compact, serial input/output common-cathode display driver that interfaces microprocessors (µPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. Applications include Bar-Graph Displays, 7-Segment Displays, Industrial Controllers, Panel Meters and LED Matrix Displays.

Parametrics

MAX7219EWG+ absolute maximum ratings: (1)V+: -0.3V to 6V; (2)DIN, CLK, LOAD, CS: -0.3V to 6V; (3)All Other Pins: -0.3V to (V+ + 0.3V); (4)Storage Temperature Range: -65 to +160℃; (5)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX7219EWG+ features: (1)10MHz Serial Interface; (2)Individual LED Segment Control; (3)Decode/No-Decode Digit Selection; (4)150μA Low-Power Shutdown (Data Retained); (5)Digital and Analog Brightness Control; (6)Display Blanked on Power-Up; (7)Drive Common-Cathode LED Display; (8)24-Pin DIP and SO Packages.

Diagrams

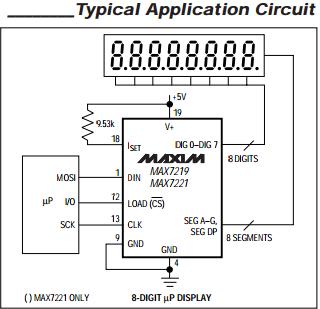

MAX7219EWG+ Typical Application Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

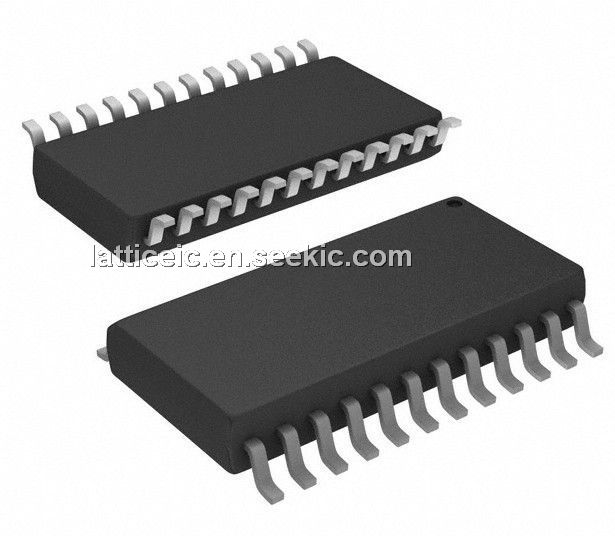

MAX7219EWG+
MAX7219EWG+
Maxim Integrated Products
LED Display Drivers 8-Digit LED Display Driver
Data Sheet
0-1: $9.83
1-25: $6.55
25-50: $4.14
50-100: $4.08
MAX7219EWG+T
MAX7219EWG+T
Maxim Integrated Products
LED Display Drivers 8-Digit LED Display Driver
Data Sheet
0-790: $3.67
790-1000: $3.57
