MC68HC908JL3ECDW

microcontroller, SOP-28, low-cost, high performance, 8-bit, Low-power design, 4-MHz, 3V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.50

PartNumber:: MC68HC908JL3ECDW

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:MC68HC908JL3ECDW
US $0.90 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

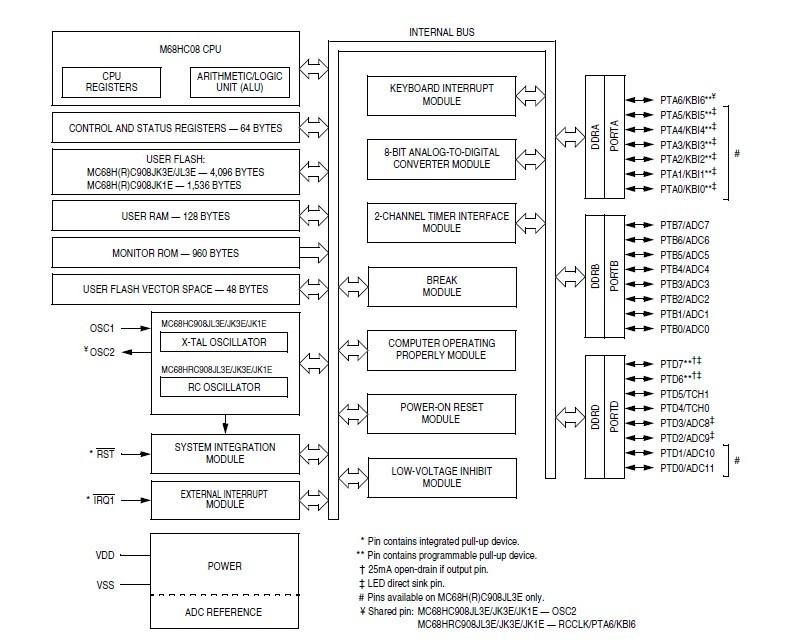

The MC68HC908JL3ECDW is a microcontroller. The MC68HC908JL3ECDW is a member of the low-cost, high performance M68HC08 Family of 8-bit microcontroller units (MCUs). It is based on the customer-specified integrated circuit (CSIC) design strategy. It uses the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

MC68HC908JL3ECDW absolute maximum ratings: (1)Supply voltage VDD: –0.3 to +6.0 V; (2)Input voltage VIN VSS: –0.3 to VDD +0.3 V; (3)Mode entry voltage, IRQ1 pin VDD+VHI VSS: –0.3 to +8.5 V; (4)Maximum current per pin excluding VDD and VSS I: ±25 mA; (5)Storage temperature TSTG: –55 to +150 ℃; (6)Maximum current out of VSS IMVSS: 100 mA; (7)Maximum current into VDD IMVDD: 100 mA.

Features

MC68HC908JL3ECDW features: (1)EMC enhanced version of MC68H(R)C908JL3/JK3/JK1; (2)High-performance M68HC08 architecture; (3)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (4)Low-power design; fully static with stop and wait modes; (5)Maximum internal bus frequency: 8-MHz at 5V operating voltage. 4-MHz at 3V operating voltage.
