Product Summary
The TS924IPT is a rail to rail quad BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation. High output current allows low load impedances to be driven. The TS924IPT exhibits a very low noise, low distortion, low offsetand high output current capability making this device an excellent choice for high quality, low voltage or battery operated audio systems. The device is stable for capacitive loads up to 500pF. The applications of the dTS924IPT include head phone amplifier, piezoelectric speaker driver, sound cards, MPEG boards, multimedia systems, line driver, buffer cordless telephones and portable communication equipment, instrumentation with low noise as key factor.
Parametrics
TS924IPT absolute maximum ratings: (1)VCC, Supply Voltage: 14 V; (2)Vid, Differential Input Voltage: ±1 V; (3)Vi, Input Voltage: -0.3 to 14 V; (4)Toper, Operating Free Air Temperature Range: -40 to +125℃; (5)Tj, Maximum Junction Temperature: 150℃; (6)Rthja, Thermal Resistance Junction to Ambient :130℃/W.
Features
TS924IPT features: (1)rail to rail input and output; (2)low noise : 9nV/Hz; (3)low distortion; (4)high output current: 80mA (able to drive 32W loads); (5)high speed: 4MHz 1.3V/ms; (6)operating from 2.7V to 12V; (7)low input offset voltage: 900μV max; (8)ESD internal protection: 2KV; (9)latch-up immunity macromodel included in this specification.

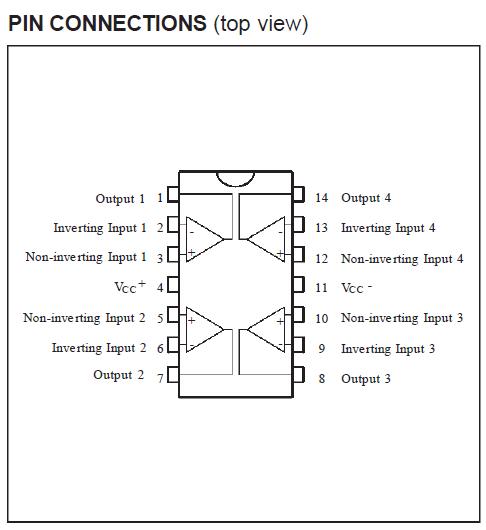

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS924IPT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
