Product Summary

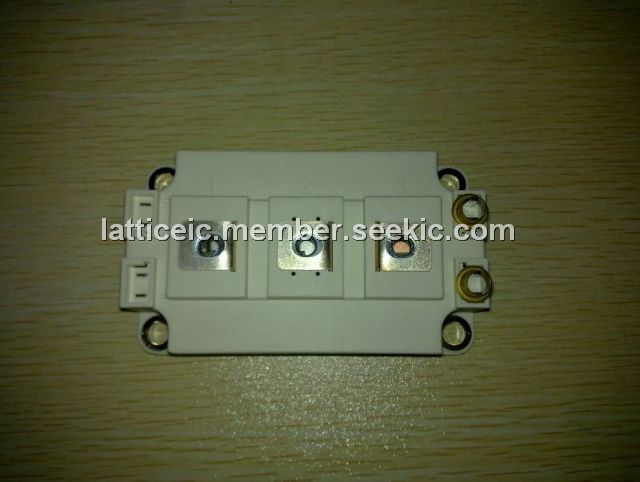

The SKM400GB126D is a Trench IGBT module. The applications of it include: AC inverter drivers, UPS, electronic welders.
Parametrics
SKM400GB126D absolute maximim ratings: (1)VCES: 1200V; (2)On the condition of Tc = 25(80) ℃, IC: 470(330)A; (3)On the condition of tp=1ms, ICRM: 600A; (4)VGES: ±20V; (5)On the condition of TOPERATION ≤ Tstg: -40~+150(125)℃; (6)On the condition of AC, 1min, Visol: 4000V.
Features
SKM400GB126D features: (1)Homogeneous Si; (2)Trench=Trenchgate technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 × Ic.

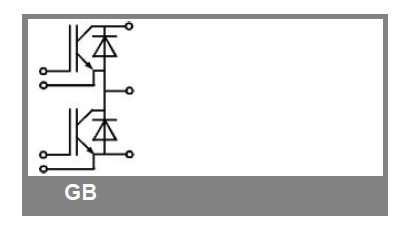

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM400GB126D |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SKM400GA123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GA124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GA128D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GA173D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GAL124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GAL125D |
Other |
|
Data Sheet |
Negotiable |
|
||||
