Product Summary

The BD3930FP-E2 is a reference voltage regulator.

Parametrics

BD3930FP-E2 absolute maximum ratings: (1)Positive supply voltage: 36V; (2)Negative supply voltage: -15V; (3)power dissipation: 1.2*2W; (4)operating temperature range: -40 to 125℃; (5)storage temperature range: -55 to 150℃; (6)peak supply voltage: 50*3V; (7)Maximum junction temperature: 150℃.

Features

BD3930FP-E2 features: (1)High output voltage precision: 3.3V±2%(Ta=25℃)/Low dropout voltage/Low quiescent currnet: 30μA; (2)Built in overcurrent protection circuit/ Thermal shutdown circuit/ overvoltage protection cirvuit/ reverse polarity circuit.

Diagrams

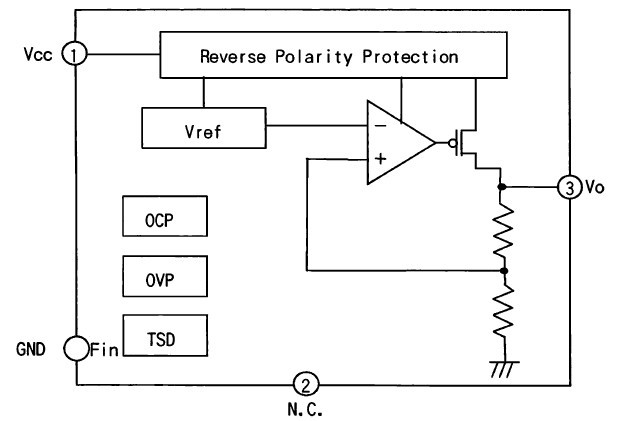

BD3930FP-E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BD3930FP-E2
BD3930FP-E2

ROHM Semiconductor

Voltage & Current References HIGH VOLT LOW QUIESCENT CUR

Data Sheet

0-2000: $0.83
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BD3916FVM-TR
BD3916FVM-TR


IC REG LDO ADJ 25MA/50MA MSOP8

Data Sheet

0-3000: $0.80
BD3930FP-E2
BD3930FP-E2

ROHM Semiconductor

Voltage & Current References HIGH VOLT LOW QUIESCENT CUR

Data Sheet

0-2000: $0.83
