Product Summary

The HFA08TB60PBF is a state of the art ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 600 volts and 8 amps continuous current, the HFA08TB60PBF is especially well suited for use as the companion diode for IGBTs and MOSFETs. In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery. The HFA08TB60PBF features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor.

Parametrics

HFA08TB60PBF absolute maximum ratings: (1)Cathode-to-Anode Voltage, VR: 600 V; (2)IF @ TC = 100℃ Continuous Forward Current: 8.0A; (3)Single Pulse Forward Current, IFSM: 60A; (4)Maximum Repetitive Forward Current, IFRM: 24A; (5)PD @ TC = 25℃ Maximum Power Dissipation: 36W; (6)PD @ TC = 100℃ Maximum Power Dissipation: 14W; (7)TJ Operating Junction and TSTG Storage Temperature Range: - 55 to +150℃.

Features

HFA08TB60PBF features: (1)Ultrafast recovery; (2)Ultrasoft recovery; (3)Very low IRRM; (4)Very Low Qrr; (5)Specified at Operating conditions; (6)Lead-free.

Diagrams

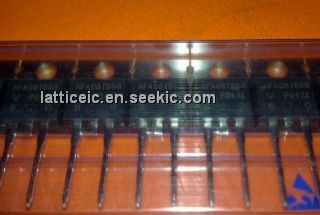

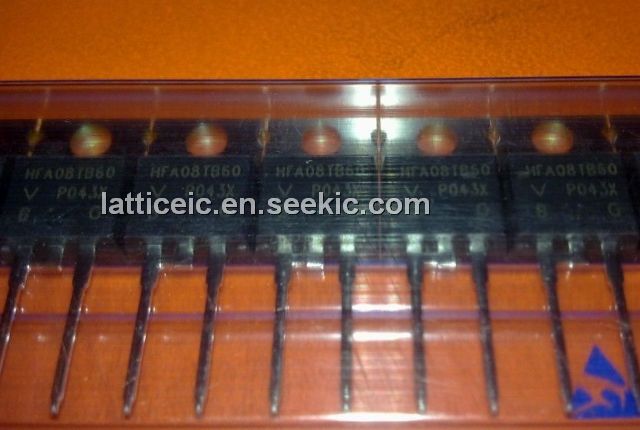

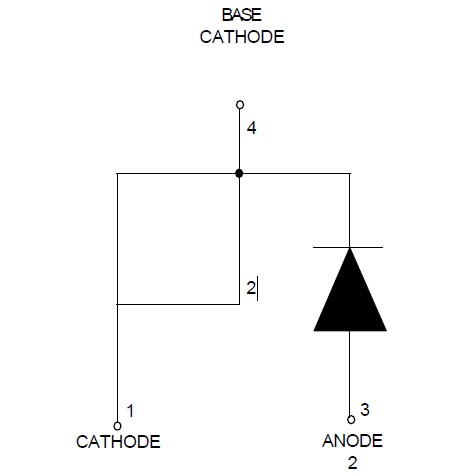

 HFA06TB120PBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HFA08TB60PBF
HFA08TB60PBF


DIODE HEXFRED 600V 8A TO220AC

Data Sheet

0-1: $1.54
1-10: $1.40
10-25: $1.25
25-100: $1.12
100-250: $1.00
250-500: $0.87
500-1000: $0.72
1000-2500: $0.67
2500-5000: $0.65
