Product Summary

The 100MT160PB is a 3-Phase bridge rectifier. It is applicated for Power conversion machines.

Parametrics

100MT160PB absolute maximum ratings: (1)TJ Maximum junction operating temperature range: - 40 to 150℃; (2)Tstg Maximum storage temperature range: -40 to 125℃; (3)RthJC Maximum thermal resistance, junction to case: 0.19 K/W DC operation per module; (4)RthJC Maximum thermal resistance, junction to case: 1.14 DC operation per junction; (5)RthJC Maximum thermal resistance, junction to case: 0.22 Rect condunction angle per module; (6)RthJC Maximum thermal resistance, junction to case: 1.29 Rect condunction angle per junction; (7)RthCS Maximum thermal resistance, case to heatsink: 0.1 K/W; (8)T Mounting torque to heatsink: ± 10% 4 Nm; (9)wt Approximate weight: 65 g.

Features

100MT160PB features: (1)Low VF; (2)Low profile package; (3)Direct Mounting to heatsink; (4)Flat-Pin/ Round-Pin versions with PCB solderable terminals; (5)Low junction-to-case Thermal Resistance; (6)3500 VRMS insulation voltage; (7)UL approval pending.

Diagrams

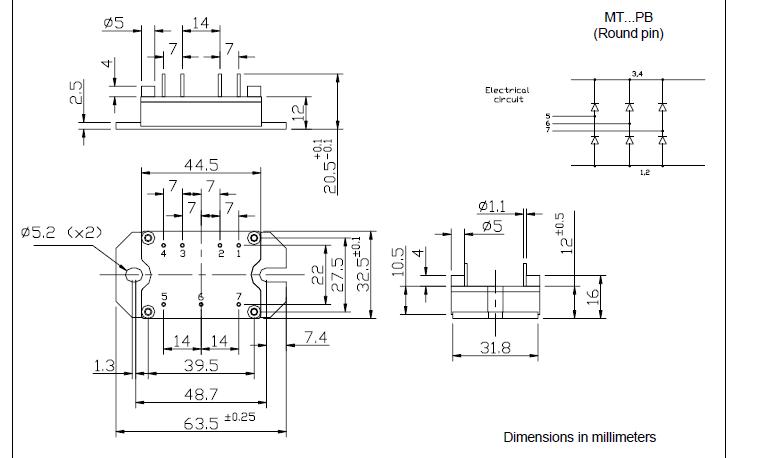

100MT160PB package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
100MT160PB
100MT160PB


DIODE BRDG 3PHS 1600V 100A INTPK

Data Sheet

Negotiable
