Product Summary

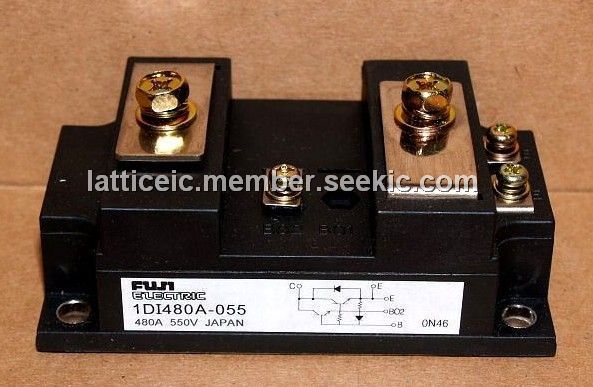

The 1DI480A-055 is a power transistor module.
Parametrics
1DI480A-055 absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO (SUS): 550 V; (4)VEBO: 6 V; (5)IC: 480 A; (6)ICP: 960 A; (7)PC: 2000 W; (8)Tj: +150℃; (9)Tstg: -40 to +125℃.
Features
1DI480A-055 features: (1)high voltage; (2)including free wheeling diode; (3)excellent safe operating aree; (4)insulated type.

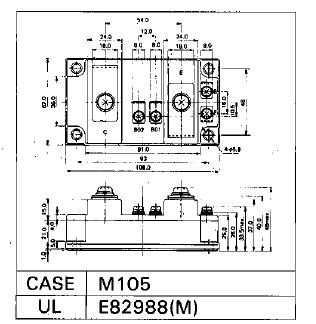

Diagrams
