Product Summary

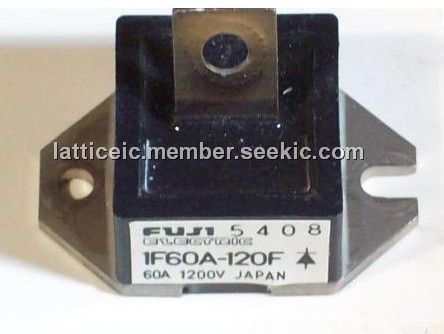

The 1F60A-120F is a fast recovery diode module. It is applicated for snuber diode.
Parametrics
1F60A-120F absolute maximum ratings: (1)VRRM: 1200 V; (2)VRSM: 1320 V; (3)IF (AV): 60 A; (4)IFSM: 1000 A; (5)I2t: 4000 A2S; (6)Tj: -40℃ to +125℃; (7)Tstg: -40℃ to +125℃.
Features
1F60A-120F features: (1)small and light weight; (2)high voltage; (3)non-insulated type.

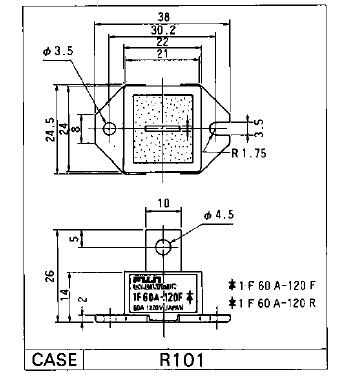

Diagrams
