Product Summary

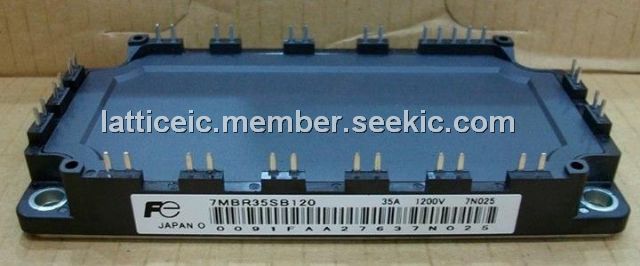

The 7MBR35SB120 is an IGBT module.

Parametrics

7MBR35SB120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector current: 50A; (4)Collector power dissipation: 240W; (5)Repetitive peak reverse voltage: 1200V; (6)Average output current: 35A; (7)Surge current (Non-Repetitive): 360A; (8)I2t (Non-Repetitive): 648 A2s; (9)Operating junction temperature: +150℃; (10)Storage temperature: -40 to +125℃; (11)Isolation voltage: AC2500V; (12)Mounting screw torque: 3.5Nm.

Features

7MBR35SB120 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

Diagrams

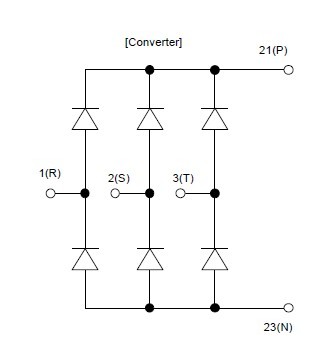

7MBR35SB120 block diagram
