Product Summary

The ADG201AKN is a monolithic CMOS device comprising four independently selectable switched. It is designed on an enhanced IC2MOS process which gives an increased signal handling capability of ±15V. The ADG201AKN also features high switching speeds and low RON. It consists of four SPST switches. The exhibts break before makes switching action.

Parametrics

ADG201AKN absolute maximum ratings: (1)VDD to VSS: 44 V; (2)VDD to GND: 25 V; (3)VSS to GND: -25 V; (4)Analog inputs voltage at S, D: VSS-0.3V to VDD+0.3V; (5)continuous current, S or D: 30 mA; (6)pulsed current S or D 1ms duration, 10% duty cycle: 70 mA; (7)power dissipation: up to +75: 470 mW; (8)operating temperature: -40 to +85℃; (9)storage temperature range: -65 to +150℃; (10)lead temperature: +300℃.

Features

ADG201AKN features: (1)44V supply maximum rating; (2)±15 V Analog signal range; (3)low RON (60Ω); (4)low leakage (0.5nA); (5)break before make switching; (6)extended plastic temperature range (-40 to +85℃); (7)low power dissipation (33mW); (8)available in 16-lead DIP/SOIC and 20-lead PLCC/LCCC packages.

Diagrams

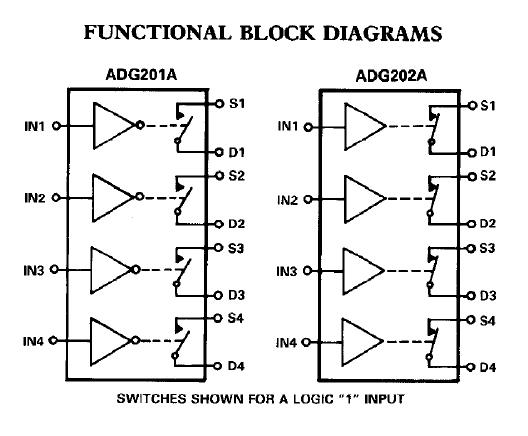

 ADG201AKN block diagram
