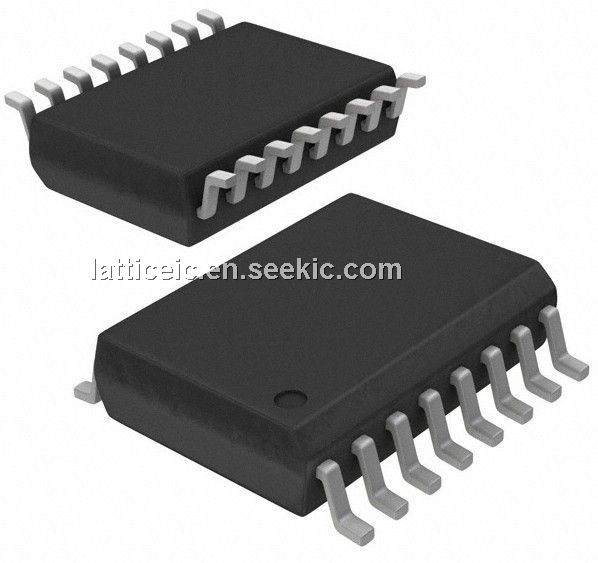

ADM202EARN

RS-232 Line Driver, 5V, 230 kbits/s, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: ADM202EARN

Brand:: Analog Devices - ADI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-06

From Other Seller

Part Number:ADM202EARN
US $0.20 - 0.40
Quantity:

piece

Product Summary

The ADM202EARN is a RS-232 Line Driver. It is a robust, high speed, 2-channel RS232/V.28 interface device that operates from a single +5 V power supply. Both products are suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC 89/336/EEC). Both the level of electromagnetic emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I/O lines, Fast Transient burst protection (1000-4-4) and Radiated Immunity (1000-4-3). EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN55022, CISPR22. Applications include General Purpose RS-232 Data Link, Portable Instruments and PDAs.

Parametrics

ADM202EARN absolute maximum ratings: (1)VCC: –0.3 V to +6 V; (2)V+: (VCC – 0.3 V) to +14 V; (3)V-: +0.3 V to –14 V; (4)Operating Temperature Range Industrial (A Version): –40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): +300℃.

Features

ADM202EARN features: (1)Complies with 89/336/EEC EMC Directive; (2)ESD Protection to IEC1000-4-2 (801.2); (3)68 kV: Contact Discharge; (4)615 kV: Air-Gap Discharge; (5)615 kV: Human Body Model; (6)EFT Fast Transient Burst Immunity (IEC1000-4-4); (7)Low EMI Emissions (EN55022); (8)230 kbits/s Data Rate Guaranteed; (9)TSSOP Package Option; (10)Upgrade for MAX202E, 232E, LT1181A.
