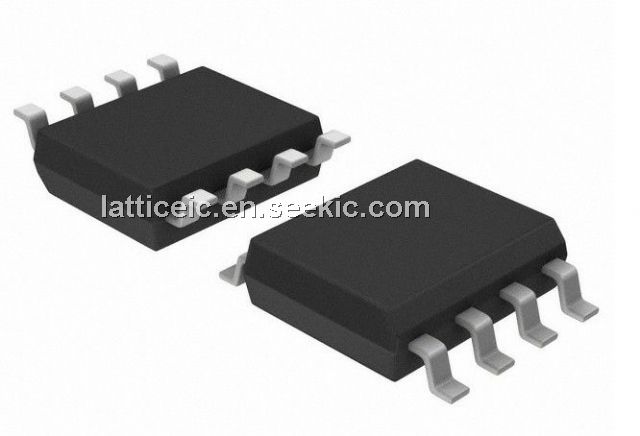

ADM483EARZ

transceiver, low power, 15 kV, 12 kΩ, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
50 ~ 500 :	0.50 / Piece
500 ~ 5000 :	0.40 / Piece

PartNumber:: ADM483EARZ

Brand:: Analog Devices - ADI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:ADM483EARZ
US $0.40 - 0.60
Quantity:

piece

Product Summary

The ADM483EARZ is a robust, low power differential line transceiver suitable for communication on multipoint bus transmission lines. Internal protection against electrostatic discharge (ESD), electrical fast transient (EFT) and electromagnetic immunity (EMI) allows operation in electrically harsh environments. ESD protection on the I-O lines meets ±15 kV when tested using the Human Body Model. EFT protection meets ±2 kV in accordance with IEC1000-4-4, while EMI immunity is in excess of 10 V/m meeting IEC1000-4-3. Applications include Low Power RS-485 Systems, Electrically Harsh Environments, EMI Sensitive Applications, DTE-DCE Interface, Packet Switching and Local Area Networks.

Parametrics

ADM483EARZ absolute maximum ratings: (1)VCC: +7V; (2)ESD Rating: Air (Human Body Model) (A, B Pins): ±15 kV; (3)ESD Rating: Contact (Human Body Model)(A, B Pins): ±8 kV; (4)FT Rating (IEC1000-4-4) (A, B Pins): ±2 kV; (5)EMI Immunity (IEC1000-4-3): 10 V/m; (6)Operating Temperature Range-Industrial (A Version): -40 to +85℃; (7)Operating Temperature Range-Storage Temperature Range:–65 to +150℃; (8)Lead Temperature (Soldering, 10 sec): +300℃; (9)Vapor Phase (60 sec): +215℃; (10)Infrared (15 sec): +220℃.

Features

ADM483EARZ features: (1)Robust RS-485 Transceiver; (2)15 kV ESD Protection Using HBM; (3)2 kV EFT Protection Meets IEC1000-4-4; (4)High EM Immunity Meets IEC1000-4-3; (5)Reduced Slew Rate for Low EM Interference; (6)250 kbps Data Rate; (7)Single +5 V ±10% Supply; (8)–7 V to +12 V Bus Common-Mode Range; (9)12 kΩ Input Impedance; (10)Short Circuit Protection; (11)Excellent Noise Immunity; (12)36 μA Supply Current; (13)0.1μA Shutdown Current.
