Product Summary

The AT29C512-70JU is a 5-volt only in-system Flash programmable and erasable read only memory (PEROM). AT29C512-70JU 512K of memory is organized as 65,536 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT29C512-70JU offers access times to 70 ns with power dissipation of just 275 mW over the industrial temperature range. When the AT29C512-70JU is deselected, the CMOS standby current is less than 300 μA. The device endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C512-70JU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C512-70JU features: (1)Fast Read Access Time 70 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Sector Program Cycle Time 10 ms; (7)DATA Polling for End of Program Detection; (8)Typical Endurance > 10,000 Cycles; (9)Single 5V 10% Supply; (10)CMOS and TTL Compatible Inputs and Outputs; (11)Green (Pb/Halide-free) Packaging Option.

Diagrams

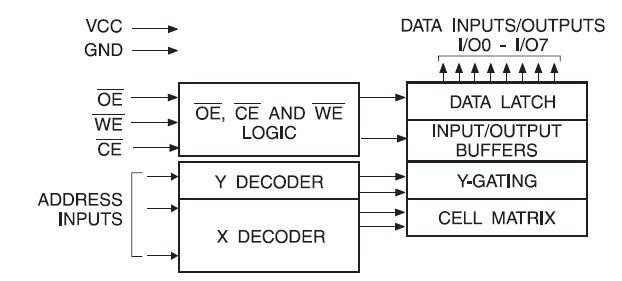

AT29C512-70JU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT29C512-70JU
AT29C512-70JU

Atmel

Flash 64K x 8 70 ns 4.5V-5.5V

Data Sheet

Negotiable
