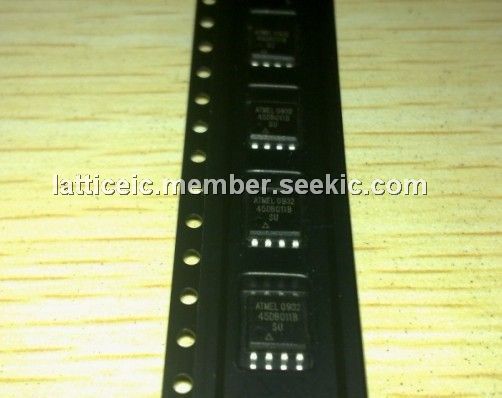

AT45DB011B-SU

120 μs, 7 ms, Industrial Temperature Range, 2.7-volt, interface Flash memory, SRAM data buffer, SOP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.50

PartNumber:: AT45DB011B-SU

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:AT45DB011B-SU
US $0.60 - 1.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

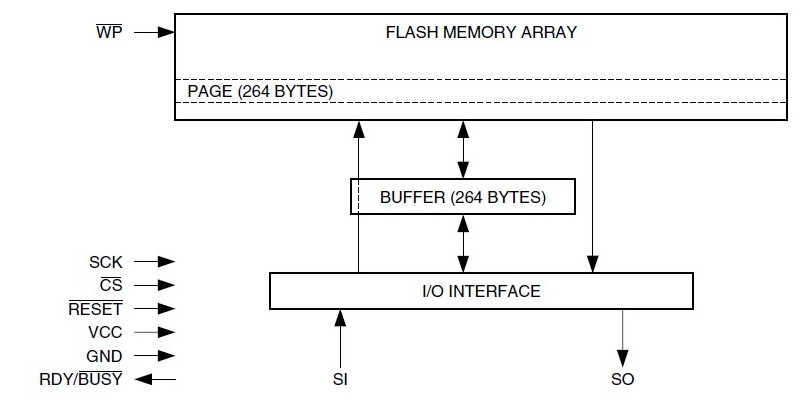

The AT45DB011B-SU is a 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 1,081,344 bits of memory are organized as 512 pages of 264 bytes each. In addition to the main memory, the AT45DB011B-SU also contains one SRAM data buffer of 264 bytes. The buffer allows receiving of data while a page in the main memory is being reprogrammed.

Parametrics

AT45DB011B-SU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Temperature under Bias: -55℃ to +125℃.

Features

AT45DB011B-SU features: (1)Fast Page Program Time 7 ms Typical; (2)120 μs Typical Page to Buffer Transfer Time; (3)Low Power Dissipation; (4)Hardware Data Protection Feature; (5)100% Compatible with AT45DB011; (6)Commercial and Industrial Temperature Ranges; (7)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.
