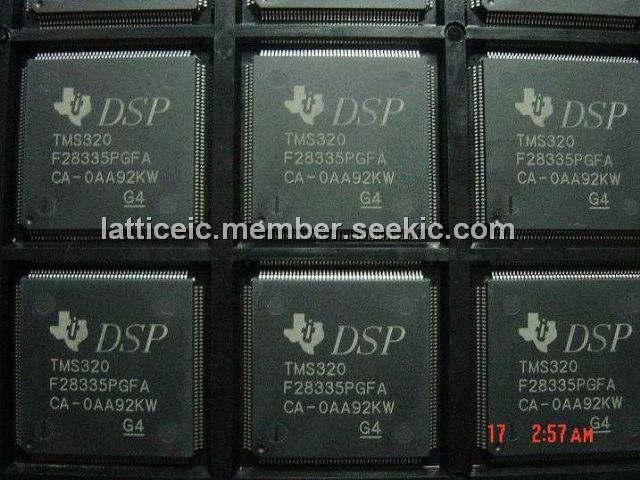

TMS320F28335PGFA

Digital Signal Controller, QFP-176, -0.3V to 4.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~30.00

PartNumber:: TMS320F28335PGFA

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-14

From Other Seller

Part Number:TMS320F28335PGFA
US $25.00 - 30.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

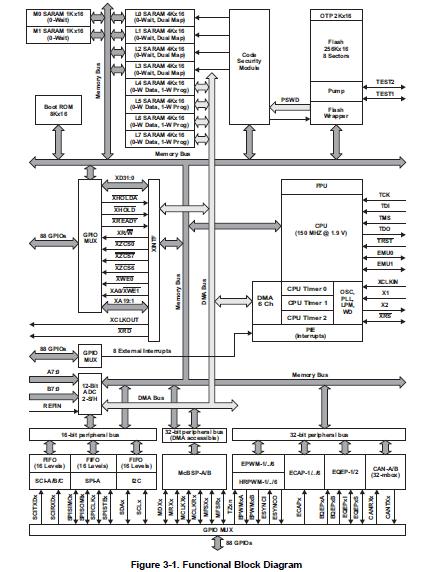

The TMS320F28335PGFA is a Digital Signal Controller. It is a highly integrated, high-performance solution for demanding control applications.

Parametrics

TMS320F28335PGFA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL with respect to VSS: - 0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO with respect to VSSA: - 0.3 V to 4.6 V; (3)Supply voltage range, VDD with respect to VSS: - 0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18 with respect to VSSA: - 0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND with respect to VSS: - 0.3 V to 0.3 V; (6)Input voltage range, VIN: - 0.3 V to 4.6 V; (7)Output voltage range, VO: - 0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ± 20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDDIO): ± 20 mA; (10)Operating ambient temperature ranges, TA: A version: - 40 to 85℃; (11)Junction temperature range, Tj: - 40 to 150℃; (12)Storage temperature range, Tstg: - 65 to 150℃.

Features

TMS320F28335PGFA features: (1) Up to 18 PWM Outputs; (2)Up to 6 HRPWM Outputs With 150 ps MEP Resolution; (3)Up to 6 Event Capture Inputs– Up to 2 Quadrature Encoder Interfaces; (4)Up to 6 32-bit/Six 16-bit Timers; (5)Up to 2 CAN Modules; (6)Up to 3 SCI (UART) Modules; (7)Up to 2 McBSP/SPI Modules; (8)Dedicated SPI Module; (9)One Inter-Integrated-Circuit (I2C) Bus; (10)12-Bit ADC, 16 Channels; (11)80-ns Conversion Rate; (12)2 x 8 Channel Input Multiplexer; (13)Two Sample-and-Hold; (14)Single/Simultaneous Conversions; (15)Internal or External Reference; (16)Up to 88 Individually Programmable, Multiplexed GPIO Pins With Input Filtering; (17)JTAG Boundary Scan Support; (18)Analysis and Breakpoint Functions; (19)Real-Time Debug via Hardware; (20)ANSI C/C++ Compiler/Assembler/Linker; (21)Code Composer Studio IDE; (22)DSP/BIOS; (23)Digital Motor Control and Digital Power Software Libraries; (24)Low-Power Modes and Power Savings.
