Product Summary

The BSM100GP60 is an IGBT-Module.

Parametrics

BSM100GP60 absolute maximum ratings: (1)repetitive peak reverse voltage: 1200 V; (2)RMS forward current per chip: 40 A; (3)DC forward current: 10 A at TC = 80℃; (4)surge forward current: 300 A at tP = 10 ms, Tvj = 25℃, 230 A at tP = 10 ms, Tvj = 150℃; (5)I2t - value: 450 A2s at tP = 10 ms, Tvj = 25℃, 260 A2s at tP = 10 ms, Tvj = 150℃.

Features

BSM100GP60 features: (1)internal insulation: Al2O3; (2)comperative tracking index: 225; (3)mounting torque: 3±10% Nm; (4)weight: 180g.

Diagrams

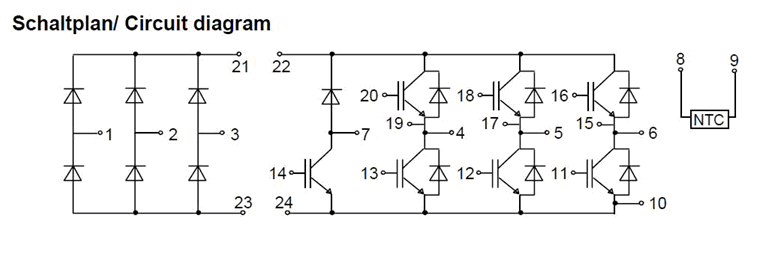

BSM100GP60 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM100GP60
BSM100GP60
Infineon Technologies
IGBT Modules 600V 100A PIM
Data Sheet
0-6: $105.43
6-10: $94.89
